Station Software 709.1 / Version Description Ausgabe 05/2016 Edition
20
4.3.8 Conveyor Motor Verification
With the Conveyor motor verification in the Verification view, all current motors of the conveyor
can be verified (lifting tables, width adjustment and belt motors). The results are displayed together
with the limits (green mark if within the limits, red cross if outside the limits).

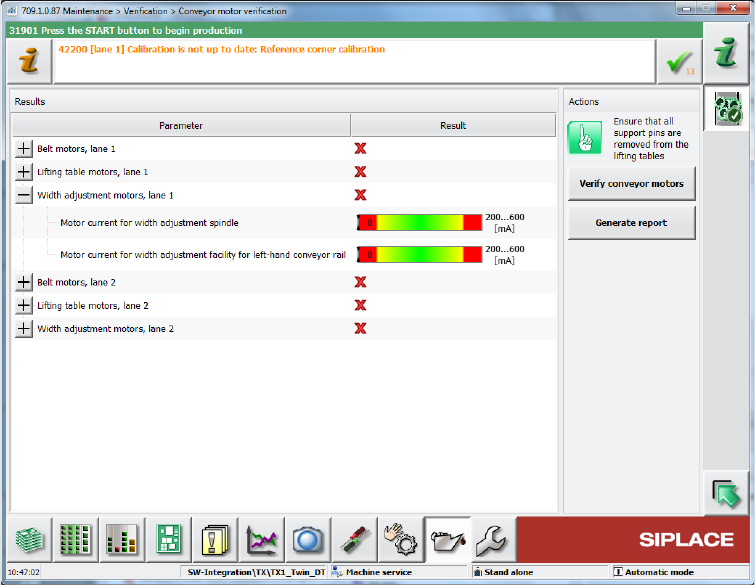

Figure 4-14: Verifying conveyor motors
The functionality is not supported on SIPLACE X-series conveyors.
Station Software 709.1 / Version Description Ausgabe 05/2016 Edition
21
4.3.9 Power Supplies
The SMPS (Switched Mode Power Supply) diagnosis has been moved to the Maintenance –
Verification view.
Figure 4-15: SMPS diagnosis
Station Software 709.1 / Version Description Ausgabe 05/2016 Edition
22
4.3.10 Feeder Verification
The pickup position of a tape feeder in the machine can be checked in the new Feeder
verification dialog. This check can be accessed in the Verification view from the Advanced
production activity level. The machine must have been calibrated.
After the Feeder verification button has been pressed, the following dialog box is displayed.
Figure 4-16: Preparing feeder verification
The operator has to prepare the feeder according to the instructions in the dialog box before
starting the verification.
After start, an image is taken by the camera at the pickup point of the feeder and displayed on the
GUI.
Figure 4-17: Verifying result
