CAMERA X Axis Parallelism - 3 Rotary Motors Setting BOARD CLAMPS Camera System Module W ARNING Gently tap the edge of the camera X axis support plate to close the gap on the camera alignment pins A View on Arrow A Securi…
CAMERA
X Axis Parallelism - 2 Rotary Motors
Setting
Camera System Module
WARNING
Using a soft headed mallet gently tap the edge of the camera X
axis support plate to close the gap on the camera alignment pins
Camera X Motor Camera Y Motor
View From Beneath Camera Carriage
Securing Screws
41 52 63
6
CAMERA
X Axis Parallelism - 3 Rotary Motors
Setting
BOARD CLAMPS
Camera System Module
WARNING
Gently tap the edge of the camera X axis support plate
to close the gap on the camera alignment pins
A
View on Arrow A
Securing Screws Securing Screws
41 52 63
7

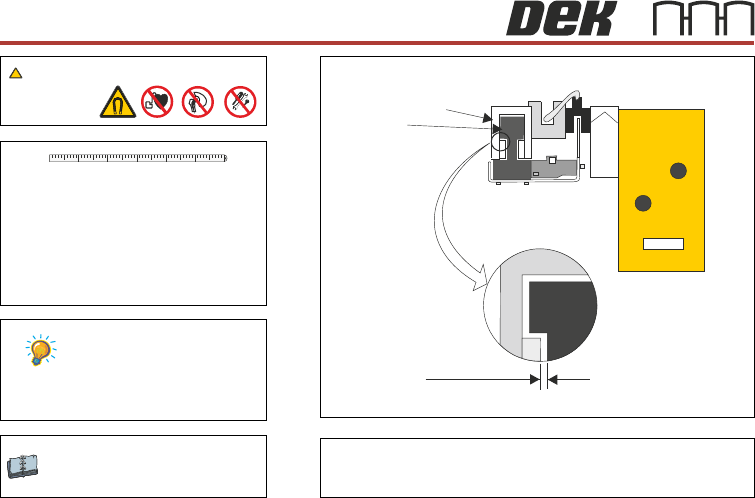

CAMERA
X Axis Magnet Track and Forcer Linear Motors
0.5mm
Setting A
Camera System Module
WARNING
Test gaps on both ends of the
forcer
Forcer to Magnet Track Air Gap (both sides)
A
Camera at Home
Forcer
Magnet Track
Strong Magnetic Force
41 52 63
))
((
8
