RAILS - HTC
Auxiliary Rail to Print Station
Setting A
3.5mm ±0.5mm
Measure the gap between the front
and rear rails of the auxiliary conveyor
and the front and rear rails of the
print station (in four positions).
HTC Module
BOARD CLAMPS
WARNING
A
41 52 63
24
RAILS
Transport Belt Speed
29 to 31 metres/min
37 to 39 metres/min
44 to 46 metres/min
Standard:
Heavy Boards:
RTC:
HTC: 59 to 61 metres/min
Settings
WARNING
Rear Belt Speed using Digital Tachometer
Digital Tachometer
Surface Speed Test Wheel
Position the tachometer on the belt
below the input or output pulley.
41 52 63
Transport Rails Module
25
RAILS

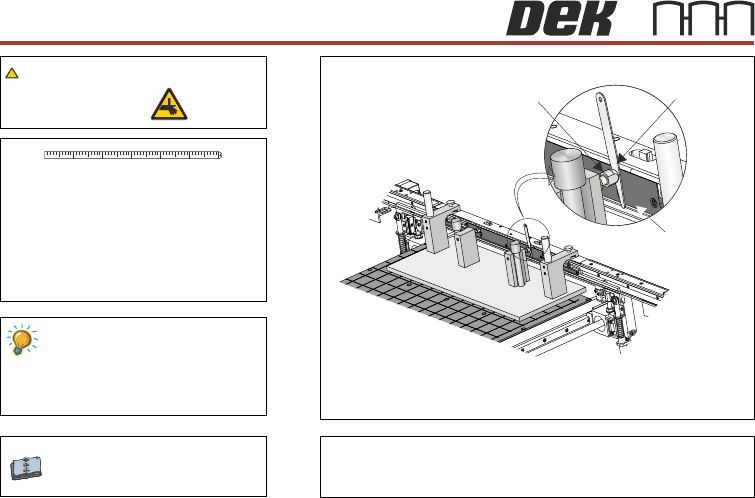

Front Rail Parallelism
Setting
0.25mm ±0.05mm
Check that the location pins are up against
the front edge of the manual tooling plate
using a 0.05mm feeler gauge.
BOARD CLAMPS
WARNING
Standard Jig 199140
Heavy Board Jig 199142
RTC Jig 187652
Using feeler gauges check that the gap
between both alignment pads and the
belt support plate of the front rail is
0.25mm +/- 0.05mm
View on Rear of Transport Rails
Feeler Gauge
Alignment Pad
Belt Support
Plate
41 52 63
Transport Rails Module
26
