RISING T ABLE Rail to T able Height Setting A Rising T able Module Use blue height gauges for heavy board rails BOARD CLAMPS W ARNING 0.3mm ± 0.05mm Manual T ooling Plate Height Gauge A 4 1 5 2 6 3 36

100%1 / 50
RAILS - RTC
Board Stop Ultrasonic Sensor Position
Setting A
Measure from the board stop to the
leading edge of the board.
Distance must be less than 8mm.
RTC Module
BOARD CLAMPS
WARNING
Less than 8mm
41 52 63
A
Board Stop
Sensor
35
RISING TABLE
Rail to Table Height
Setting A
Rising Table Module
Use blue height gauges for heavy
board rails
BOARD CLAMPS
WARNING
0.3mm ±0.05mm
Manual Tooling Plate
Height Gauge
A
41 52 63
36

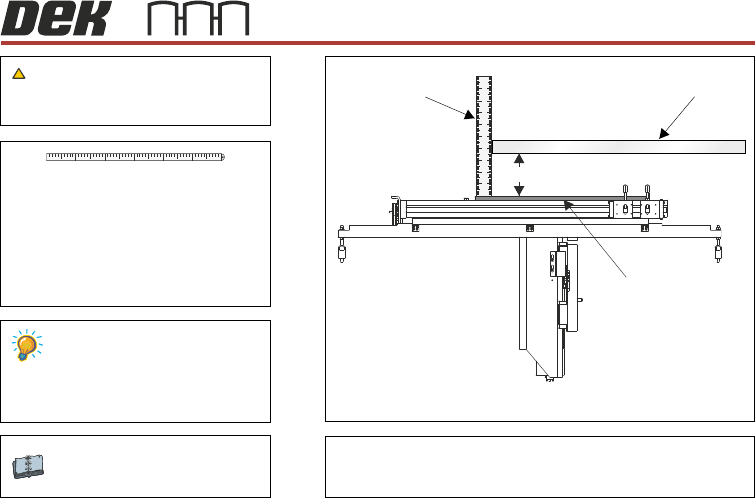

RISING TABLE
Table Home
At rear of screen, measure from the top of
the tooling plate to the underside of the
screen.
For rising table home setting on the
following: Dual Lane Module, HTC Module
and RTC Module Rails are the same as
Standard Rails.
Standard Rails: 209mm ±1mm
MTR Rails : 233mm ±1mm
Setting A
Rising Table Module
WARNING
View on Left Hand Side of Machine
Steel Rule
Screen
Manual Tooling Plate
41 52 63
A
37
