CAMERA X Axis Magnet T rack and Forcer Linear Motors 0.5mm Setting A Camera System Module W ARNING T est gaps on both ends of the forcer Forcer to Magnet T rack Air Gap (both sides) A Camera at Home Forcer Magnet T rack …
CAMERA
X Axis Parallelism - 3 Rotary Motors
Setting
BOARD CLAMPS
Camera System Module
WARNING
Gently tap the edge of the camera X axis support plate
to close the gap on the camera alignment pins
A
View on Arrow A
Securing Screws Securing Screws
41 52 63
7
CAMERA
X Axis Magnet Track and Forcer Linear Motors
0.5mm
Setting A
Camera System Module
WARNING
Test gaps on both ends of the
forcer
Forcer to Magnet Track Air Gap (both sides)
A
Camera at Home
Forcer
Magnet Track
Strong Magnetic Force
41 52 63
))
((
8

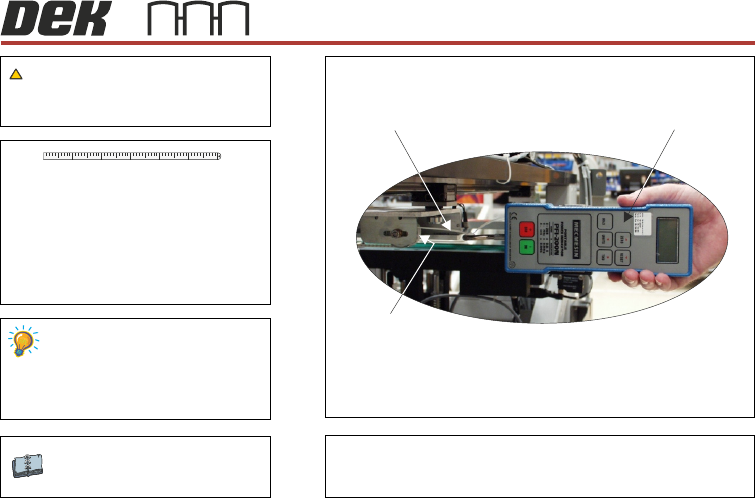

View on Left Hand Side of Machine
Forcemeter
Cable Tie
Idle Pulley
24.0 kg
CAMERA
X Axis Timing Belt Tension Step 1
Setting
Set belt tension to 24kg
WARNING
Camera System Module
41 52 63
9
