RAILS - HTC Auxiliary Rail to Print Station Setting A 3.5mm ±0.5mm Measure the gap between the front and rear rails of the auxiliary conveyor and the front and rear rails of the print station (in four positions). HTC Mod…

PRINT CARRIAGE

Belt Tension

Set belt tension to 12kg

Setting

Print Carriage Module

WARNING

View on Rear of Machine

12.00

Cable Tie

Rear Belt Clamp

41 52 63

RAILS - HTC

Auxiliary Rail to Print Station

Setting A

3.5mm ±0.5mm

Measure the gap between the front

and rear rails of the auxiliary conveyor

and the front and rear rails of the

print station (in four positions).

HTC Module

BOARD CLAMPS

WARNING

41 52 63

RAILS

Transport Belt Speed

29 to 31 metres/min

37 to 39 metres/min

44 to 46 metres/min

Standard:

Heavy Boards:

RTC:

HTC: 59 to 61 metres/min

Settings

WARNING

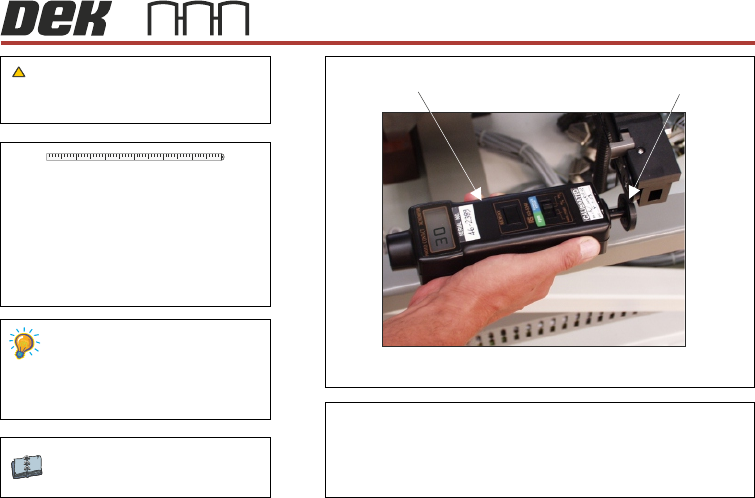

Rear Belt Speed using Digital Tachometer

Digital Tachometer

Surface Speed Test Wheel

Position the tachometer on the belt

below the input or output pulley.

41 52 63

Transport Rails Module
