RISING TABLE
Rail to Table Height
Setting A
Rising Table Module
Use blue height gauges for heavy
board rails
BOARD CLAMPS
WARNING
0.3mm ±0.05mm
Manual Tooling Plate
Height Gauge
A
41 52 63
36
RISING TABLE
Table Home
At rear of screen, measure from the top of
the tooling plate to the underside of the
screen.
For rising table home setting on the
following: Dual Lane Module, HTC Module
and RTC Module Rails are the same as
Standard Rails.
Standard Rails: 209mm ±1mm
MTR Rails : 233mm ±1mm
Setting A
Rising Table Module
WARNING
View on Left Hand Side of Machine
Steel Rule
Screen
Manual Tooling Plate
41 52 63
A
37

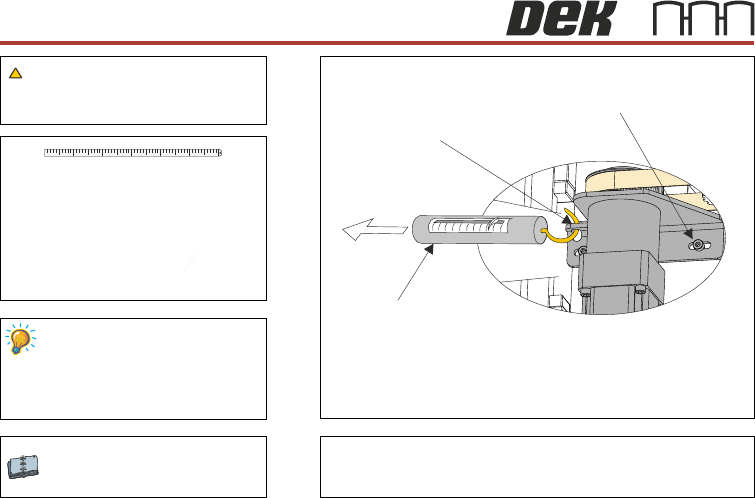

RISING TABLE
Motor Belt Tension
Set belt tension to 6kg
Setting
On completion, calibrate the following:
Vision Height (Camera System Module),
Print Height Rising Table module).
Rising Table Module
WARNING
View From Rear of Rising Table Motor Assembly
Spring Balance
Attachment Point
Rising Table Motor Securing Screws
(2 positions)
Spring Balance
41 52 63
38
