28mm Setting A Paste Dispenser System W ARNING Check the paste cartridge sensor is mounted centrally in the sensor bracket. 4 1 5 2 6 3 View on T op of Paste Level Sensor Securing Nuts Sensor Bracket A 17 P ASTE DISPENSE…

CHASE

Screen Position Sensor

ASM Module

Machined C Chase Module

WARNING

41 52 63

Sensor Behind Screen

Adjust the sensitivity anti-clockwise until LED

extinguishes,

Turn the sensitivity clockwise until LED

illuminates.

Turn the sensitivity clockwise a further half turn.

Move the rear screen frame backwards and

forwards under the sensor to ensure that the test

LED is only activiated under the screen.

Sensor Over Screen Frame Sensor Over Screen

Test LED Off

Test LED On

Test LED Off

28mm

Setting A

Paste Dispenser System

WARNING

Check the paste cartridge sensor is

mounted centrally in the sensor

bracket.

41 52 63

View on Top of Paste Level Sensor

Securing Nuts Sensor Bracket

PASTE DISPENSER

Paste Dispenser Empty

PROFLOW

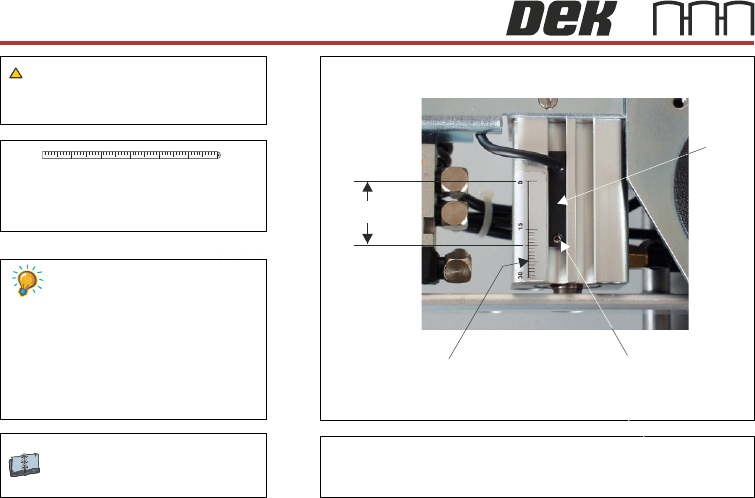

Cassette Low Sensor

20mm (Factory Set)

Setting A

ProFlow Module

WARNING

For ProFlow cassette option - ensure that

the cable of the sensor is configured to

the top.

Rechargeable transfer head option -

sensor may be inverted (cable to the

bottom) if paste low activation is required

at midway point.

41 52 63

1mm gradient = 43grms print material usage

Graduated Scale (1mm increments)

Securing Screw

Sensor
