PROFLOW A TX Print Medium Demand Sensor Setting A 5mm ± 1mm ProFlow A TX Module W ARNING View on Left Hand End of T ransfer Head A Adjustment Screw Print Medium Demand Sensor 4 1 5 2 6 3 21

100%1 / 50
PROFLOW TX
Print Medium Demand Sensor
Setting A
5mm ± 1mm
ProFlow TX Module
WARNING
View on Right Hand End of Transfer Head
A
Securing
Screw
Print Medium
Demand Sensor
41 52 63
20
PROFLOW ATX
Print Medium Demand Sensor
Setting A
5mm ± 1mm
ProFlow ATX Module
WARNING
View on Left Hand End of Transfer Head
A
Adjustment
Screw
Print Medium
Demand Sensor
41 52 63
21

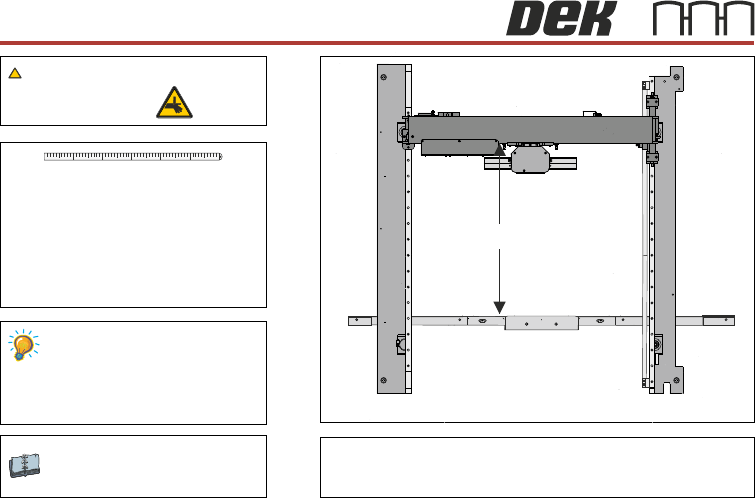

PRINT CARRIAGE
Home Sensor
612mm +/- 2.0mm
Setting A
Measure the distance between the
inside face of the front rail belt support
plate and the print carriage machined
face (squeegee/Proflow interface area).
Print Carriage Module
BOARD CLAMPS
WARNING
Plan view on Front Rail and Printhead
A
41 52 63
22
