UNDER SCREEN CLEANER
Height Position
3.25mm ±0.25mm
Setting A
View on Front of Machine
Measure between the wipers and
the screen mask.
Position the front edge of the screen
mask over the underscreen cleaner
wipers.
Blue Underscreen Cleaner Module
Vortex Underscreen Cleaner Module
WARNING
41 52 63
Screen Frame
A
Squeegee Wiper Assembly
40
CYCLONE UNDER SCREEN CLEANER
Home Position - 1
Cyclone Underscreen Cleaner Module
WARNING
Securing Screw
Securing Screw RH Home Magnet Bracket
LH Home Magnet Bracket
Loosen the home magnet bracket
securing screws.
Move the cleaner back to the home
position.
see next page
41 52 63
41

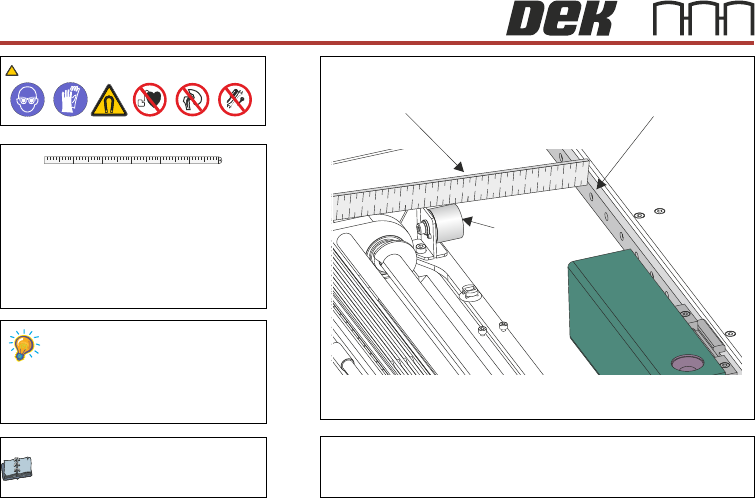

CYCLONE UNDER SCREEN CLEANER
Home Position - 2
106mm ±1mm
Setting
Measure the gap between the camera
linear bearing guide and the left hand
side camera magnet.
Cyclone Underscreen Cleaner Module
WARNING
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
Left Hand Side
Camera Magnet
Camera Linear Bearing Guide
Steel Rule
41 52 63
Strong Magnetic Force
))
((
42
