RISING T ABLE Motor Belt T ension Set belt tension to 6kg Setting On completion, calibrate the following: Vision Height (Camera System Module), Print Height Rising T able module). Rising T able Module W ARNING View From …

RISING TABLE

Table Home

At rear of screen, measure from the top of

the tooling plate to the underside of the

screen.

For rising table home setting on the

following: Dual Lane Module, HTC Module

and RTC Module Rails are the same as

Standard Rails.

Standard Rails: 209mm ±1mm

MTR Rails : 233mm ±1mm

Setting A

Rising Table Module

WARNING

View on Left Hand Side of Machine

Steel Rule

Screen

Manual Tooling Plate

41 52 63

RISING TABLE

Motor Belt Tension

Set belt tension to 6kg

Setting

On completion, calibrate the following:

Vision Height (Camera System Module),

Print Height Rising Table module).

Rising Table Module

WARNING

View From Rear of Rising Table Motor Assembly

Spring Balance

Attachment Point

Rising Table Motor Securing Screws

(2 positions)

Spring Balance

41 52 63

UNDER SCREEN CLEANER

Home Position

2.0mm - Error Message Displayed

1.5mm - Error Message Extinguished

Setting

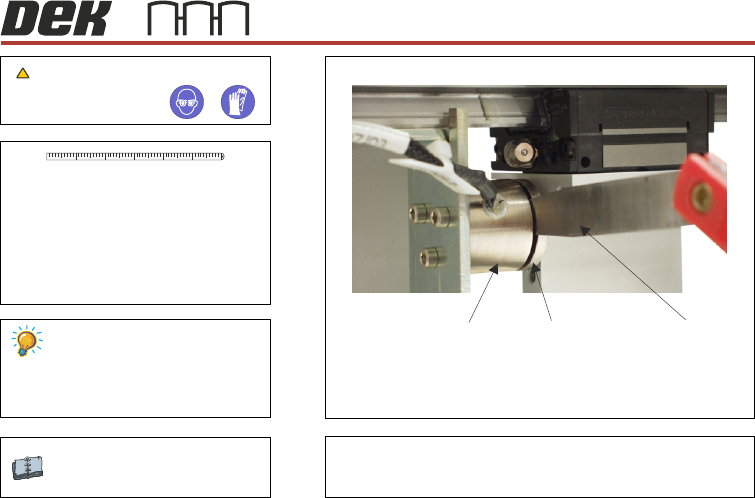

Position feeler gauge between the

left hand electromagnetic clamp

(8SOL19) and the clamp plate.

Under Screen Cleaner Module

WARNING

View on Front of Machine

Feeler GaugesElectromagnetic Clamp Clamp Plate
