View on Left Hand Side of Machine Forcemeter Cable T ie Idle Pulley 24.0 kg CAMERA X Axis Timing Belt T ension Step 1 Setting Set belt tension to 24kg W ARNING Camera System Module 4 1 5 2 6 3 9

CAMERA

X Axis Magnet Track and Forcer Linear Motors

0.5mm

Setting A

Camera System Module

WARNING

Test gaps on both ends of the

forcer

Forcer to Magnet Track Air Gap (both sides)

Camera at Home

Forcer

Magnet Track

Strong Magnetic Force

41 52 63

))

((

View on Left Hand Side of Machine

Forcemeter

Cable Tie

Idle Pulley

24.0 kg

CAMERA

X Axis Timing Belt Tension Step 1

Setting

Set belt tension to 24kg

WARNING

Camera System Module

41 52 63

CAMERA

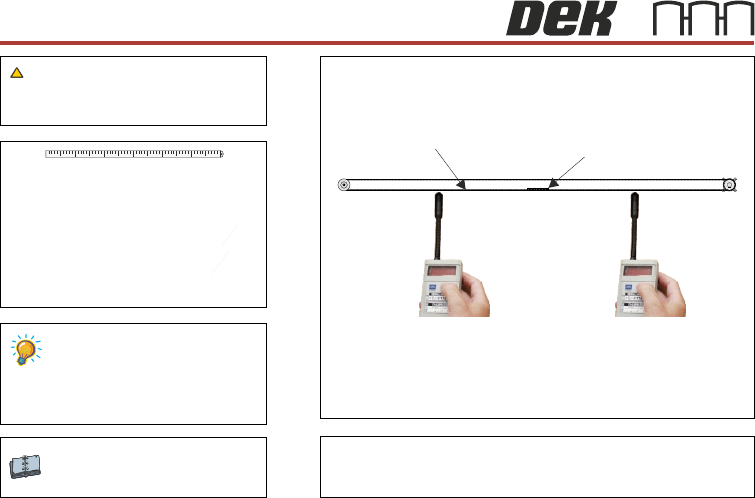

X Axis Timing Belt Tension Step 2

Setting

WARNING

Check the frequency is between 52Hz and 58Hz

Camera System Module

Using tension meter 190279, check

readings at points indicated are between

52 & 58Hz and that both readings are

within 1 Hz of each other.

Timing Belt ClampTiming Belt

Position A (mid span)

Position B (mid span)

41 52 63
