SQUEEGEE Belt T ension 3kg to 4kgs Setting Squeegee Module Belt tensions identical for front and rear squeegee belts. W ARNING Rear Squeegee Motor T ensioning Looped Cable T ie Force Meter T ension in Direction of Drive …
CYCLONE UNDER SCREEN CLEANER
Height Position
1.5mm ±0.2mm
Setting Plate 193305.
Using feeler gauges, on the left hand
side, measure the gap between the setting
plate and the screen support plate at the
front and rear edges of the setting plate.
Cyclone Underscreen Cleaner Module
The gap at the front and rear edges of the
setting plate must be identical to ensure
that the cleaner is level in the Y direction.
WARNING
41 52 63
A
Cleaner Vacuum Chamber
Cyclone Cleaner
Screen Support Plate
Setting Plate
Setting A
43
SQUEEGEE
Belt Tension
3kg to 4kgs
Setting
Squeegee Module
Belt tensions identical for front and rear
squeegee belts.
WARNING
Rear Squeegee Motor Tensioning
Looped Cable Tie
Force Meter
Tension in Direction of
Drive Belt Orientation
Right Stepper Motor
Drive Belt
Motor Securing Screw
Position (3 positions)
41 52 63
44

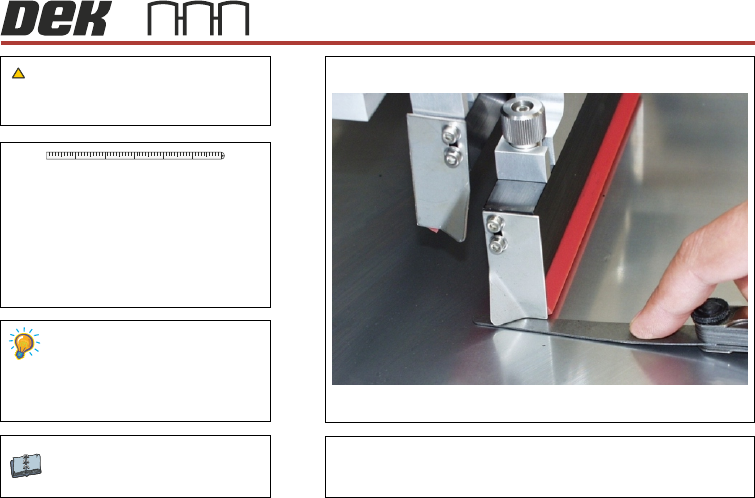

SQUEEGEE
Paste Deflector
0.25mm
Setting
WARNING
Squeegee Module
41 52 63
45
