0.6mm Setting Measure the gap between the board clamp and the board support plate on both ends of the rear print station rail. BOARD CLAMPS W ARNING RAILS - RTC Board Clamp Setting Board Support Plate Feeler Gauge Board …
0.325mm ±0.025mm
Setting A
Measure between the board clamp
and the transport belt guide.
BOARD CLAMPS
WARNING
Cross Section of Rear Rail Assembly
View on Rear Board Clamp
Rear Board Clamp
Belt Support Plate
Belt Support Plate
Rear Board Clamp
Moving Rail
A
RAILS
Board Clamp Setting
41 52 63
Transport Rails Module
30
0.6mm
Setting
Measure the gap between the board
clamp and the board support plate
on both ends of the rear print station
rail.
BOARD CLAMPS
WARNING
RAILS - RTC
Board Clamp Setting
Board Support Plate
Feeler Gauge
Board Clamp
View on Inside of Print Station Rail
41 52 63
Transport Rails Module
31
RAILS
Rail Lifted
Feeler Gauge
Opto Vane
Bracket
Opto
indicator

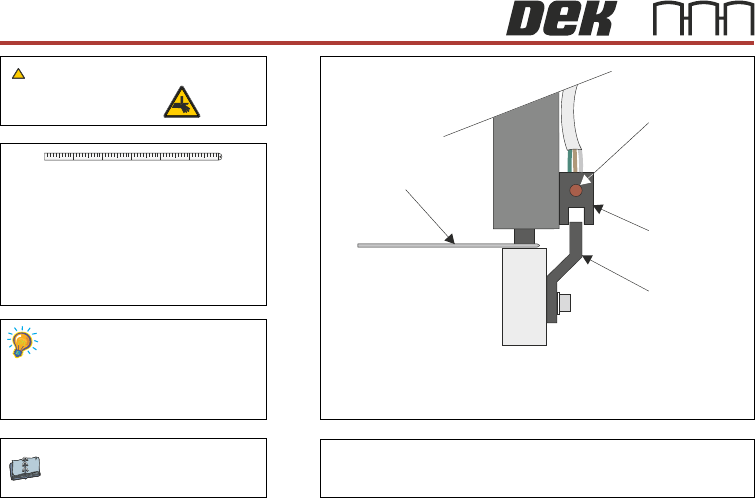

View on Front of Rail System
(Showing Right Hand Rail Opto)
0.5mm
Setting
For Sunx opto's:
For Omron opto's:
LED is OFF with 0.5mm,
ON with 0.7mm feeler gauge.
LED is ON with 0.5mm,
OFF with 0.7mm feeler gauge.
BOARD CLAMPS
WARNING
41 52 63
Transport Rails Module
