UNDER SCREEN CLEANER Height Position 3.25mm ±0.25mm Setting A View on F ront of Machine Measure between the wipers and the screen mask. Position the front edge of the screen mask over the underscreen cleaner wipers. Blue…
UNDER SCREEN CLEANER
Home Position
2.0mm - Error Message Displayed
1.5mm - Error Message Extinguished
Setting
Position feeler gauge between the
left hand electromagnetic clamp
(8SOL19) and the clamp plate.
Under Screen Cleaner Module
WARNING
View on Front of Machine
Feeler GaugesElectromagnetic Clamp Clamp Plate
41 52 63
39
UNDER SCREEN CLEANER
Height Position
3.25mm ±0.25mm
Setting A
View on Front of Machine
Measure between the wipers and
the screen mask.
Position the front edge of the screen
mask over the underscreen cleaner
wipers.
Blue Underscreen Cleaner Module
Vortex Underscreen Cleaner Module
WARNING
41 52 63
Screen Frame
A
Squeegee Wiper Assembly
40

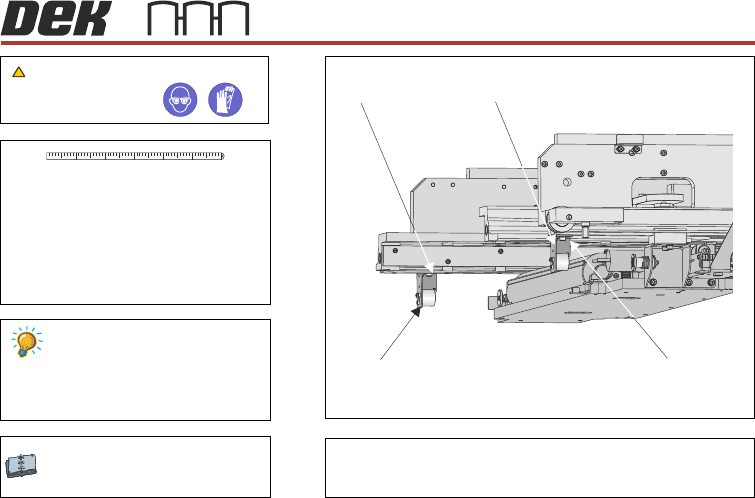

CYCLONE UNDER SCREEN CLEANER
Home Position - 1
Cyclone Underscreen Cleaner Module
WARNING
Securing Screw
Securing Screw RH Home Magnet Bracket
LH Home Magnet Bracket
Loosen the home magnet bracket
securing screws.
Move the cleaner back to the home
position.
see next page
41 52 63
41
