PRINT CARRIAGE Belt T ension Set belt tension to 12kg Setting Print Carriage Module W ARNING View on R ear of Machine 12.00 Cable T ie Rear Belt Clamp 4 1 5 2 6 3 23

100%1 / 50
PRINT CARRIAGE
Home Sensor
612mm +/- 2.0mm
Setting A
Measure the distance between the
inside face of the front rail belt support
plate and the print carriage machined
face (squeegee/Proflow interface area).
Print Carriage Module
BOARD CLAMPS
WARNING
Plan view on Front Rail and Printhead
A
41 52 63
22
PRINT CARRIAGE
Belt Tension
Set belt tension to 12kg
Setting
Print Carriage Module
WARNING
View on Rear of Machine
12.00
Cable Tie
Rear Belt Clamp
41 52 63
23
RAILS - HTC
Auxiliary Rail to Print Station
Setting A
3.5mm ±0.5mm

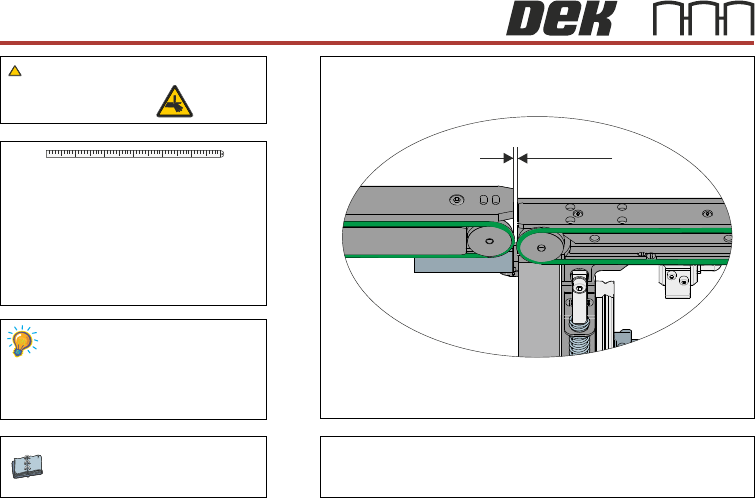

Measure the gap between the front
and rear rails of the auxiliary conveyor
and the front and rear rails of the
print station (in four positions).
HTC Module
BOARD CLAMPS
WARNING
A
41 52 63
24
