RAILS
Rear Rail Parallelism
BOARD CLAMPS
WARNING
H jigs 158109
Both sets of linear guides to fit snugly
into the slots of the jigs.
Loosen the four securing bolts of each
side leg in turn, ie left hand side, then
right hand side.
Prior to carrying out this procedure ensure
that the Front Rail Parallelism check has
been carried out.
View on Right Hand Side of Transport Rails
Securing Bolts 4 posns
Linear Guide Rails
41 52 63
Transport Rails Module
27
RAILS
Home Position Rail Width
Setting A
250.20mm ±0.05mm
Transport Rails Module
BOARD CLAMPS
WARNING
Using a vernier gauge above the
transport belts in the centre of the board
clamps measure the distance between
the board clamps
Plan View of Board Clamps
A
Rear Board Clamp
Transport Belts
Front Board Clamp
41 52 63
28

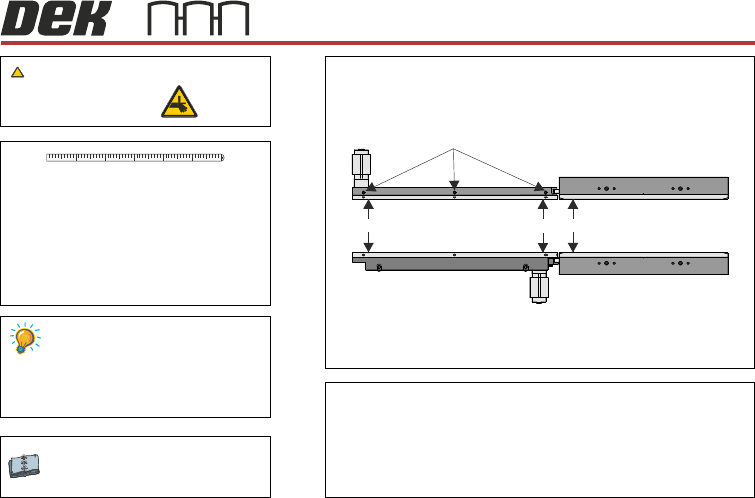

Setting
RTC Module
Ensure that the measurement is taken from
the flat and not the chamfered end.
Measure the rail width on the inroad
conveyor close to the print station -
Dimension B.
Measure the rail width on the inroad conveyor
close to the inroad conveyor - Dimension C.
BOARD CLAMPS
WARNING
Print Station
Dimension B must be between Dimension A and A + 0.05mm
Inroad Conveyor
Dimension C must be between Dimension B +0.1mm and B +0.2mm
RAILS - RTC
Rear Conveyor Alignment
Board Guide Securing Screws
C
B A
41 52 63
29
