RAILS Rail Lifted Feeler Gauge Opto V ane Bracket Opto indicator View on Front of Rail System (Showing Right Hand Rail Opto) 0.5mm Setting For Sunx opto's: For Omron opto's: LED is OFF with 0.5mm, ON with 0.7mm…
0.6mm
Setting
Measure the gap between the board
clamp and the board support plate
on both ends of the rear print station
rail.
BOARD CLAMPS
WARNING
RAILS - RTC
Board Clamp Setting
Board Support Plate
Feeler Gauge
Board Clamp
View on Inside of Print Station Rail
41 52 63
Transport Rails Module
31
RAILS
Rail Lifted
Feeler Gauge
Opto Vane
Bracket
Opto
indicator
View on Front of Rail System
(Showing Right Hand Rail Opto)
0.5mm
Setting
For Sunx opto's:
For Omron opto's:
LED is OFF with 0.5mm,
ON with 0.7mm feeler gauge.
LED is ON with 0.5mm,
OFF with 0.7mm feeler gauge.
BOARD CLAMPS
WARNING
41 52 63
Transport Rails Module
32
RAILS

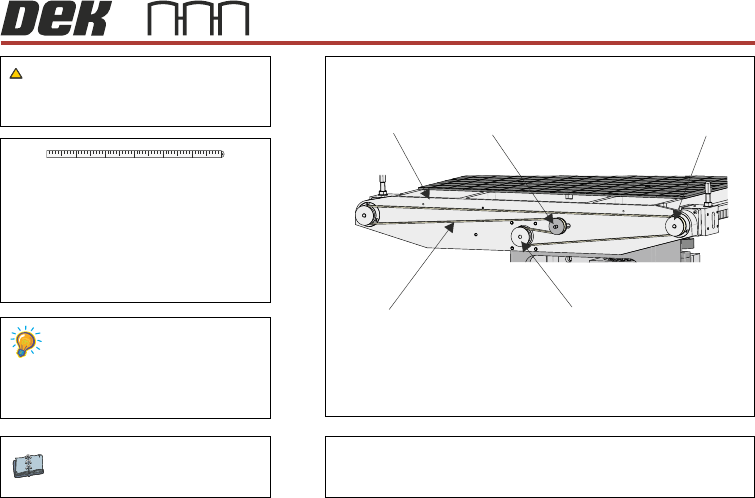

Rear Rail Drive Belt
WARNING
Setting
6kg
38Hz to 45Hz
View on Rear of Rising Table
Using a cable tie engage a forcemeter
with the adjustable idler pulley.
Apply a horizontal force.
Using a tension meter on the top of the
drive belt, check the tension.
Adjustable Idler Pulley
Moving Rail Stepper Motor Pulley
Drive Belt
Left Hand Drive Shaft
Rail Drive Plate
41 52 63
Transport Rails Module
