CAMERA Y Axis Magnet T rack and Forcer Linear Motors 0.5mm Setting A W ARNING Camera System Module A T est both gaps, on both ends of the forcer Y Forcer And Magnet T rack (Support brackets and fixings removed for clarit…

100%1 / 50
CAMERA
Y Axis Timing Belt Tension Step 2
Setting
Camera System Module
WARNING
Check the frequency is between 42Hz and 48Hz
Timing Belt ClampTiming Belt
Position A (mid span)
Position B (mid span)
41 52 63
Using tension meter 190279, check
readings at points indicated are between
42 & 48Hz and that both readings are
within 1 Hz of each other.
12
CAMERA
Y Axis Magnet Track and Forcer Linear Motors
0.5mm
Setting A
WARNING
Camera System Module
A
Test both gaps, on
both ends of the forcer
Y Forcer And Magnet Track
(Support brackets and fixings removed for clarity)
Magnet Track
Adjustment Screw (2)
View on Arrow A
Forcer to Magnet Track
Air Gap (both sides)
0.5mm Min
Forcer
Magnet Track
41 52 63
Strong Magnetic Force
))
((
A
13
CAMERA

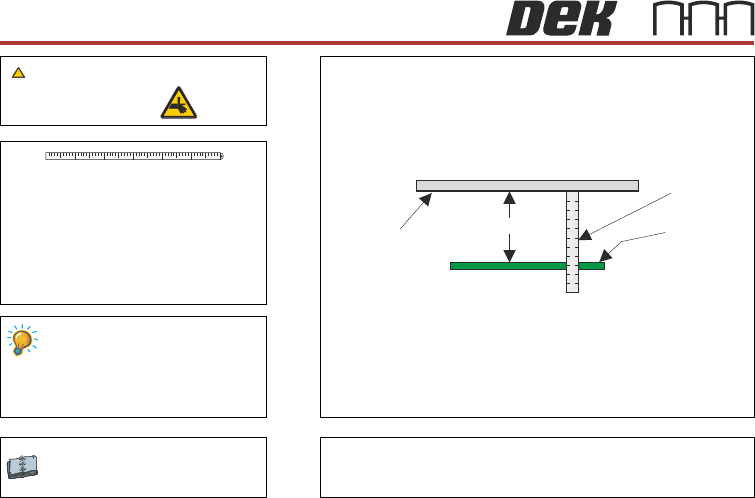

Vision Height
Setting A
Camera System Module
WARNING
Standard Rails: 78mm -0.0mm +0.2mm
MTR Rails: 79.5mm -0.0mm +0.2mm
Top of Board
Metric Rule
Underside
of Stencil
A
41 52 63
BOARD CLAMPS
