0.325mm ±0.025mm Setting A Measure between the board clamp and the transport belt guide. BOARD CLAMPS W ARNING Cross Section of Rear Rail Assembly View on Rear Board Clamp Rear Board Clamp Belt Support Plate Belt Support…
Setting
RTC Module
Ensure that the measurement is taken from
the flat and not the chamfered end.
Measure the rail width on the inroad
conveyor close to the print station -
Dimension B.
Measure the rail width on the inroad conveyor
close to the inroad conveyor - Dimension C.
BOARD CLAMPS
WARNING
Print Station
Dimension B must be between Dimension A and A + 0.05mm
Inroad Conveyor
Dimension C must be between Dimension B +0.1mm and B +0.2mm
RAILS - RTC
Rear Conveyor Alignment
Board Guide Securing Screws
C
B A
41 52 63
29
0.325mm ±0.025mm
Setting A
Measure between the board clamp
and the transport belt guide.
BOARD CLAMPS
WARNING
Cross Section of Rear Rail Assembly
View on Rear Board Clamp
Rear Board Clamp
Belt Support Plate
Belt Support Plate
Rear Board Clamp
Moving Rail
A
RAILS
Board Clamp Setting
41 52 63
Transport Rails Module
30

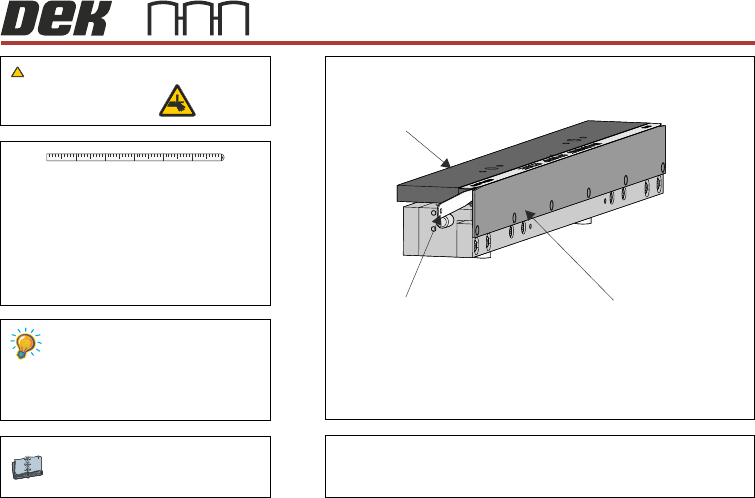

0.6mm
Setting
Measure the gap between the board
clamp and the board support plate
on both ends of the rear print station
rail.
BOARD CLAMPS
WARNING
RAILS - RTC
Board Clamp Setting
Board Support Plate
Feeler Gauge
Board Clamp
View on Inside of Print Station Rail
41 52 63
Transport Rails Module
31
