UNDER SCREEN CLEANER Home Position 2.0mm - Error Message Displayed 1.5mm - Error Message Extinguished Setting Position feeler gauge between the left hand electromagnetic clamp (8SOL19) and the clamp plate. Under Screen C…
RISING TABLE
Motor Belt Tension
Set belt tension to 6kg
Setting
On completion, calibrate the following:
Vision Height (Camera System Module),
Print Height Rising Table module).
Rising Table Module
WARNING
View From Rear of Rising Table Motor Assembly
Spring Balance
Attachment Point
Rising Table Motor Securing Screws
(2 positions)
Spring Balance
41 52 63
38
UNDER SCREEN CLEANER
Home Position
2.0mm - Error Message Displayed
1.5mm - Error Message Extinguished
Setting
Position feeler gauge between the
left hand electromagnetic clamp
(8SOL19) and the clamp plate.
Under Screen Cleaner Module
WARNING
View on Front of Machine
Feeler GaugesElectromagnetic Clamp Clamp Plate
41 52 63
39

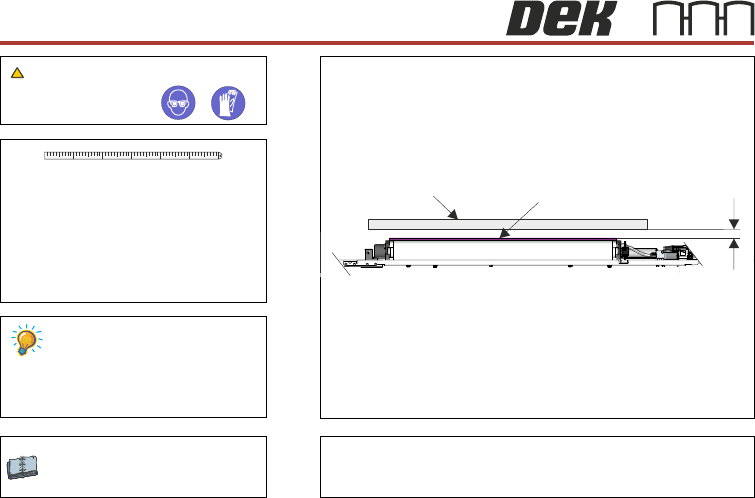

UNDER SCREEN CLEANER
Height Position
3.25mm ±0.25mm
Setting A
View on Front of Machine
Measure between the wipers and
the screen mask.
Position the front edge of the screen
mask over the underscreen cleaner
wipers.
Blue Underscreen Cleaner Module
Vortex Underscreen Cleaner Module
WARNING
41 52 63
Screen Frame
A
Squeegee Wiper Assembly
40
