RAILS Heavy Board Drive Belt W ARNING Setting 5.1kg to 6.1kgs Using a cable tie engage a forcemeter with the adjustable idler pulley . Apply a horizontal force to achieve the setting. Transport Rails Module View on Insid…

100%1 / 50
RAILS
Rear Rail Drive Belt
WARNING
Setting
6kg
38Hz to 45Hz
View on Rear of Rising Table
Using a cable tie engage a forcemeter
with the adjustable idler pulley.
Apply a horizontal force.
Using a tension meter on the top of the
drive belt, check the tension.
Adjustable Idler Pulley
Moving Rail Stepper Motor Pulley
Drive Belt
Left Hand Drive Shaft
Rail Drive Plate
41 52 63
Transport Rails Module
33
RAILS
Heavy Board Drive Belt
WARNING
Setting
5.1kg to 6.1kgs
Using a cable tie engage a forcemeter
with the adjustable idler pulley.
Apply a horizontal force to achieve the
setting.
Transport Rails Module
View on Inside of Front Rail
Adjustable
Idler Pulley
Motor Bracket
41 52 63
34
RAILS - RTC

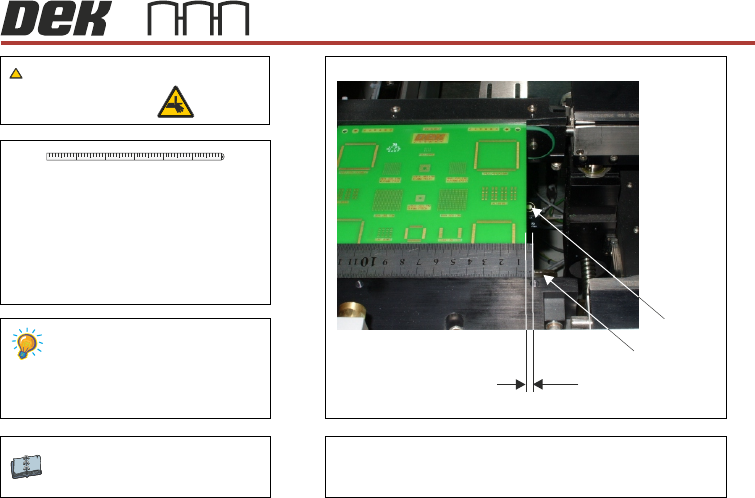

Board Stop Ultrasonic Sensor Position
Setting A
Measure from the board stop to the
leading edge of the board.
Distance must be less than 8mm.
RTC Module
BOARD CLAMPS
WARNING
Less than 8mm
41 52 63
A
Board Stop
Sensor
