Setting RTC Module Ensure that the measurement is taken from the flat and not the chamfered end. Measure the rail width on the inroad conveyor close to the print station - Dimension B. Measure the rail width on the inroa…
RAILS
Home Position Rail Width
Setting A
250.20mm ±0.05mm
Transport Rails Module
BOARD CLAMPS
WARNING
Using a vernier gauge above the
transport belts in the centre of the board
clamps measure the distance between
the board clamps
Plan View of Board Clamps
A
Rear Board Clamp
Transport Belts
Front Board Clamp
41 52 63
28
Setting
RTC Module
Ensure that the measurement is taken from
the flat and not the chamfered end.
Measure the rail width on the inroad
conveyor close to the print station -
Dimension B.
Measure the rail width on the inroad conveyor
close to the inroad conveyor - Dimension C.
BOARD CLAMPS
WARNING
Print Station
Dimension B must be between Dimension A and A + 0.05mm
Inroad Conveyor
Dimension C must be between Dimension B +0.1mm and B +0.2mm
RAILS - RTC
Rear Conveyor Alignment
Board Guide Securing Screws
C
B A
41 52 63
29

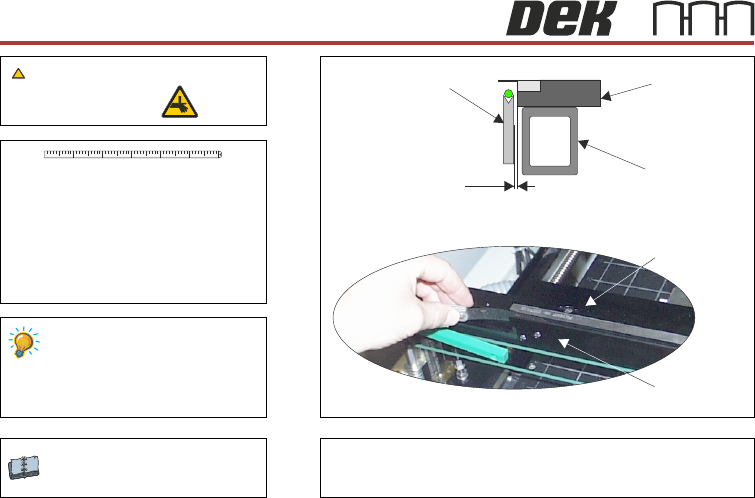

0.325mm ±0.025mm
Setting A
Measure between the board clamp
and the transport belt guide.
BOARD CLAMPS
WARNING
Cross Section of Rear Rail Assembly
View on Rear Board Clamp
Rear Board Clamp
Belt Support Plate
Belt Support Plate
Rear Board Clamp
Moving Rail
A
RAILS
Board Clamp Setting
41 52 63
Transport Rails Module
30
