RAILS - RTC Board Stop Ultrasonic Sensor Position Setting A Measure from the board stop to the leading edge of the board. Distance must be less than 8mm. RTC Module BOARD CLAMPS W ARNING Less than 8mm 4 1 5 2 6 3 A Board…

100%1 / 50
RAILS
Heavy Board Drive Belt
WARNING
Setting
5.1kg to 6.1kgs
Using a cable tie engage a forcemeter
with the adjustable idler pulley.
Apply a horizontal force to achieve the
setting.
Transport Rails Module
View on Inside of Front Rail
Adjustable
Idler Pulley
Motor Bracket
41 52 63
34
RAILS - RTC
Board Stop Ultrasonic Sensor Position
Setting A
Measure from the board stop to the
leading edge of the board.
Distance must be less than 8mm.
RTC Module
BOARD CLAMPS
WARNING
Less than 8mm
41 52 63
A
Board Stop
Sensor
35
RISING TABLE

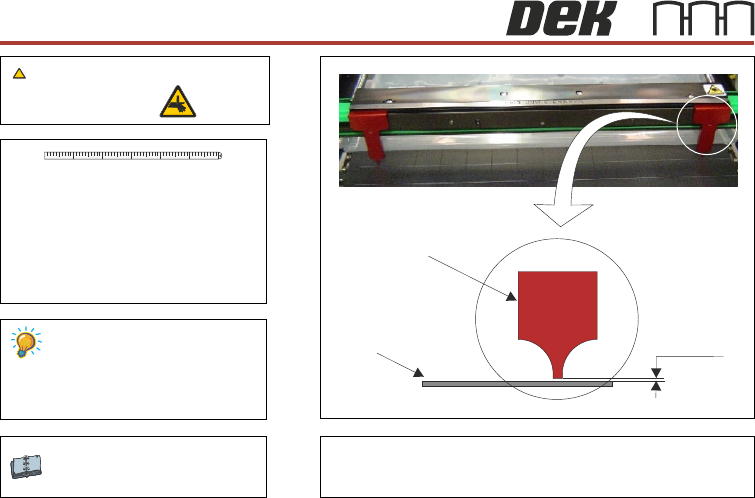

Rail to Table Height
Setting A
Rising Table Module
Use blue height gauges for heavy
board rails
BOARD CLAMPS
WARNING
0.3mm ±0.05mm
Manual Tooling Plate
Height Gauge
A
41 52 63
