CYCLONE UNDER SCREEN CLEANER
Home Position - 1
Cyclone Underscreen Cleaner Module
WARNING
Securing Screw
Securing Screw RH Home Magnet Bracket
LH Home Magnet Bracket
Loosen the home magnet bracket
securing screws.
Move the cleaner back to the home
position.
see next page
41 52 63
41
CYCLONE UNDER SCREEN CLEANER
Home Position - 2
106mm ±1mm
Setting
Measure the gap between the camera
linear bearing guide and the left hand
side camera magnet.
Cyclone Underscreen Cleaner Module
WARNING
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
Left Hand Side
Camera Magnet
Camera Linear Bearing Guide
Steel Rule
41 52 63
Strong Magnetic Force
))
((
42

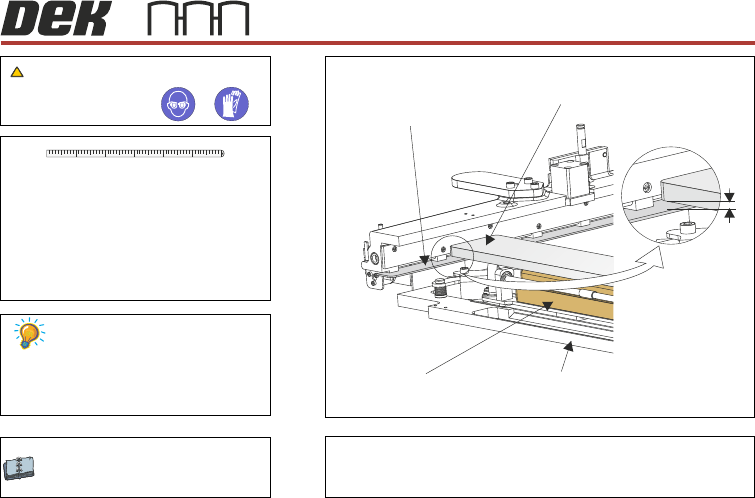

CYCLONE UNDER SCREEN CLEANER
Height Position
1.5mm ±0.2mm
Setting Plate 193305.
Using feeler gauges, on the left hand
side, measure the gap between the setting
plate and the screen support plate at the
front and rear edges of the setting plate.
Cyclone Underscreen Cleaner Module
The gap at the front and rear edges of the
setting plate must be identical to ensure
that the cleaner is level in the Y direction.
WARNING
41 52 63
A
Cleaner Vacuum Chamber
Cyclone Cleaner
Screen Support Plate
Setting Plate
Setting A
43
