CAMERA X Axis Timing Belt T ension Step 2 Setting W ARNING Check the frequency is between 52Hz and 58Hz Camera System Module Using tension meter 190279, check readings at points indicated are between 52 & 58Hz and th…

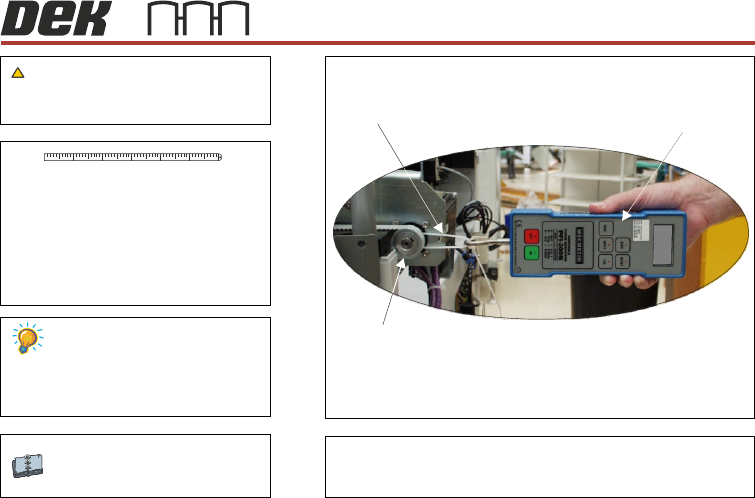

View on Left Hand Side of Machine
Forcemeter
Cable Tie
Idle Pulley
24.0 kg
CAMERA
X Axis Timing Belt Tension Step 1
Setting
Set belt tension to 24kg
WARNING
Camera System Module
41 52 63
9
CAMERA
X Axis Timing Belt Tension Step 2
Setting
WARNING
Check the frequency is between 52Hz and 58Hz
Camera System Module
Using tension meter 190279, check
readings at points indicated are between
52 & 58Hz and that both readings are
within 1 Hz of each other.
Timing Belt ClampTiming Belt
Position A (mid span)
Position B (mid span)
41 52 63
10
CAMERA
Y Axis Timing Belt Tension Step 1
Set belt tension to 24kg
Setting
Camera System Module
WARNING
Forcemeter
Cable Tie
View on Right Hand Side of Machine
Motor Pulley
24.0 kg
41 52 63
11
