PROFLOW Drive Belt T ension 3 to 4kgs Setting ProFlow Module W ARNING Securing Screws in 4 posns Tie-wrap 4 1 5 2 6 3 19

100%1 / 50
PROFLOW

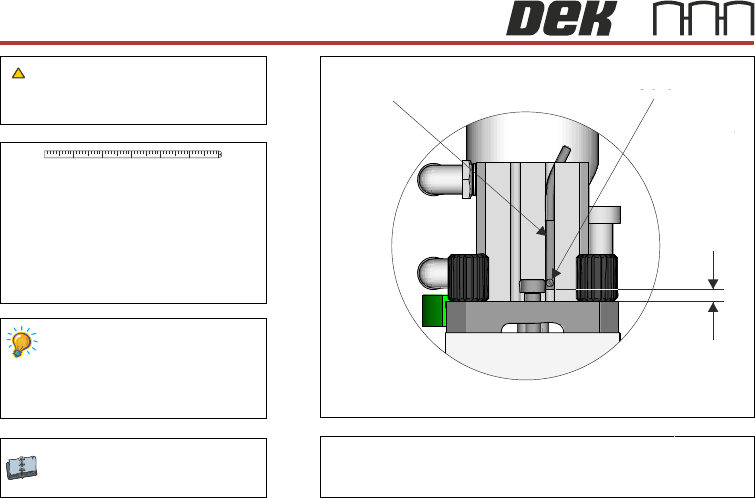

Cassette Low Sensor
20mm (Factory Set)
Setting A
ProFlow Module
WARNING
For ProFlow cassette option - ensure that
the cable of the sensor is configured to
the top.
Rechargeable transfer head option -
sensor may be inverted (cable to the
bottom) if paste low activation is required
at midway point.
41 52 63
1mm gradient = 43grms print material usage
Graduated Scale (1mm increments)
Securing Screw
Sensor
A
18
PROFLOW
Drive Belt Tension
3 to 4kgs
Setting
ProFlow Module
WARNING
Securing Screws
in 4 posns
Tie-wrap
41 52 63
19
PROFLOW TX
Print Medium Demand Sensor
Setting A
5mm ± 1mm
ProFlow TX Module
WARNING
View on Right Hand End of Transfer Head
A
Securing
Screw
Print Medium
Demand Sensor
41 52 63
