CYCLONE UNDER SCREEN CLEANER Height Position 1.5mm ±0.2mm Setting Plate 193305. Using feeler gauges, on the left hand side, measure the gap between the setting plate and the screen support plate at the front and rear edg…

100%1 / 50
CYCLONE UNDER SCREEN CLEANER
Home Position - 2
106mm ±1mm
Setting
Measure the gap between the camera
linear bearing guide and the left hand
side camera magnet.
Cyclone Underscreen Cleaner Module
WARNING
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
Left Hand Side
Camera Magnet
Camera Linear Bearing Guide
Steel Rule
41 52 63
Strong Magnetic Force
))
((
42
CYCLONE UNDER SCREEN CLEANER
Height Position
1.5mm ±0.2mm
Setting Plate 193305.
Using feeler gauges, on the left hand
side, measure the gap between the setting
plate and the screen support plate at the
front and rear edges of the setting plate.
Cyclone Underscreen Cleaner Module
The gap at the front and rear edges of the
setting plate must be identical to ensure
that the cleaner is level in the Y direction.
WARNING
41 52 63
A
Cleaner Vacuum Chamber
Cyclone Cleaner
Screen Support Plate
Setting Plate
Setting A
43

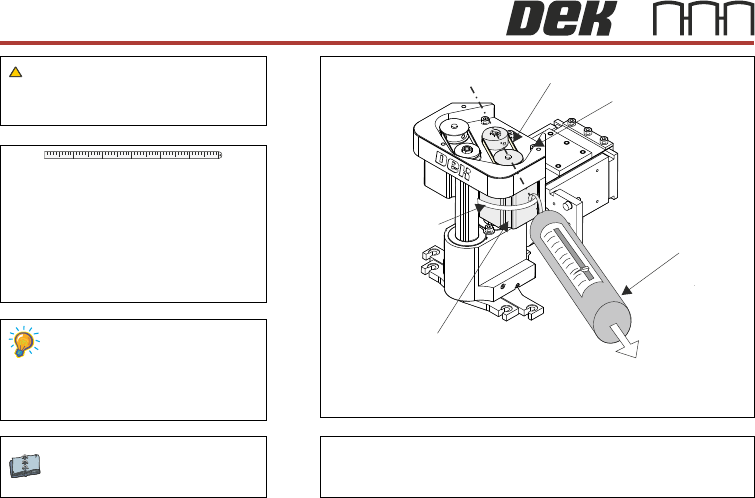

SQUEEGEE
Belt Tension
3kg to 4kgs
Setting
Squeegee Module
Belt tensions identical for front and rear
squeegee belts.
WARNING
Rear Squeegee Motor Tensioning
Looped Cable Tie
Force Meter
Tension in Direction of
Drive Belt Orientation
Right Stepper Motor
Drive Belt
Motor Securing Screw
Position (3 positions)
41 52 63
44
