RAILS Rear Rail Drive Belt W ARNING Setting 6kg 38Hz to 45Hz View on Rear of Rising T able Using a cable tie engage a forcemeter with the adjustable idler pulley . Apply a horizontal force. Using a tension meter on the t…

100%1 / 50
RAILS
Rail Lifted
Feeler Gauge
Opto Vane
Bracket
Opto
indicator
View on Front of Rail System
(Showing Right Hand Rail Opto)
0.5mm
Setting
For Sunx opto's:
For Omron opto's:
LED is OFF with 0.5mm,
ON with 0.7mm feeler gauge.
LED is ON with 0.5mm,
OFF with 0.7mm feeler gauge.
BOARD CLAMPS
WARNING
41 52 63
Transport Rails Module
32
RAILS
Rear Rail Drive Belt
WARNING
Setting
6kg
38Hz to 45Hz
View on Rear of Rising Table
Using a cable tie engage a forcemeter
with the adjustable idler pulley.
Apply a horizontal force.
Using a tension meter on the top of the
drive belt, check the tension.
Adjustable Idler Pulley
Moving Rail Stepper Motor Pulley
Drive Belt
Left Hand Drive Shaft
Rail Drive Plate
41 52 63
Transport Rails Module
33

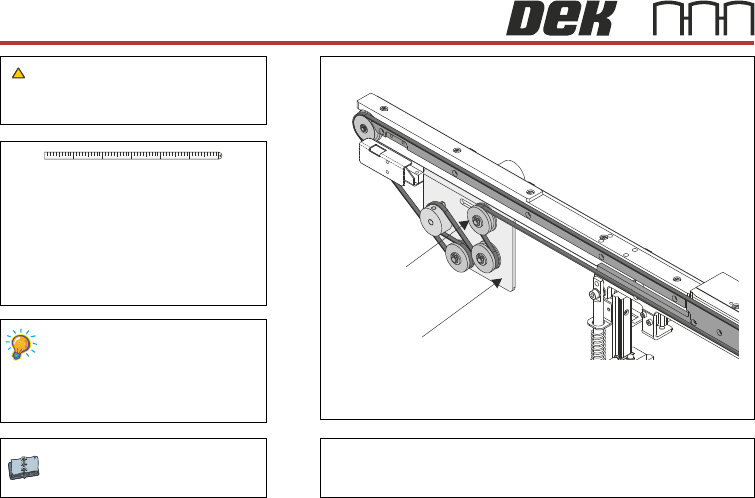

RAILS
Heavy Board Drive Belt
WARNING
Setting
5.1kg to 6.1kgs
Using a cable tie engage a forcemeter
with the adjustable idler pulley.
Apply a horizontal force to achieve the
setting.
Transport Rails Module
View on Inside of Front Rail
Adjustable
Idler Pulley
Motor Bracket
41 52 63
34
