PROFLOW Cassette Low Sensor 20mm (Factory Set) Setting A ProFlow Module W ARNING For ProFlow cassette option - ensure that the cable of the sensor is configured to the top. Rechargeable transfer head option - sensor may …

100%1 / 50
28mm
Setting A
Paste Dispenser System
WARNING
Check the paste cartridge sensor is
mounted centrally in the sensor
bracket.
41 52 63
View on Top of Paste Level Sensor
Securing Nuts Sensor Bracket
A
17
PASTE DISPENSER
Paste Dispenser Empty
PROFLOW
Cassette Low Sensor
20mm (Factory Set)
Setting A
ProFlow Module
WARNING
For ProFlow cassette option - ensure that
the cable of the sensor is configured to
the top.
Rechargeable transfer head option -
sensor may be inverted (cable to the
bottom) if paste low activation is required
at midway point.
41 52 63
1mm gradient = 43grms print material usage
Graduated Scale (1mm increments)
Securing Screw
Sensor
A
18

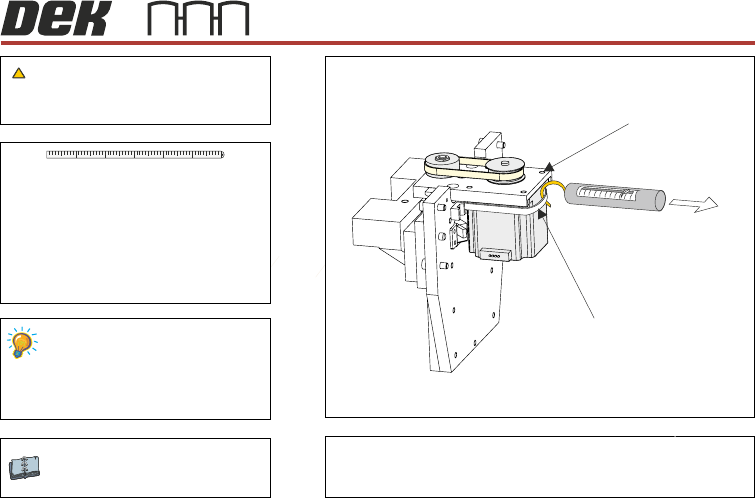

PROFLOW
Drive Belt Tension
3 to 4kgs
Setting
ProFlow Module
WARNING
Securing Screws
in 4 posns
Tie-wrap
41 52 63
19
