PRINT CARRIAGE Home Sensor 612mm +/- 2.0mm Setting A Measure the distance between the inside face of the front rail belt support plate and the print carriage machined face (squeegee/Proflow interface area). Print Carriag…

100%1 / 50
PROFLOW ATX
Print Medium Demand Sensor
Setting A
5mm ± 1mm
ProFlow ATX Module
WARNING
View on Left Hand End of Transfer Head
A
Adjustment
Screw
Print Medium
Demand Sensor
41 52 63
21
PRINT CARRIAGE
Home Sensor
612mm +/- 2.0mm
Setting A
Measure the distance between the
inside face of the front rail belt support
plate and the print carriage machined
face (squeegee/Proflow interface area).
Print Carriage Module
BOARD CLAMPS
WARNING
Plan view on Front Rail and Printhead
A
41 52 63
22
PRINT CARRIAGE

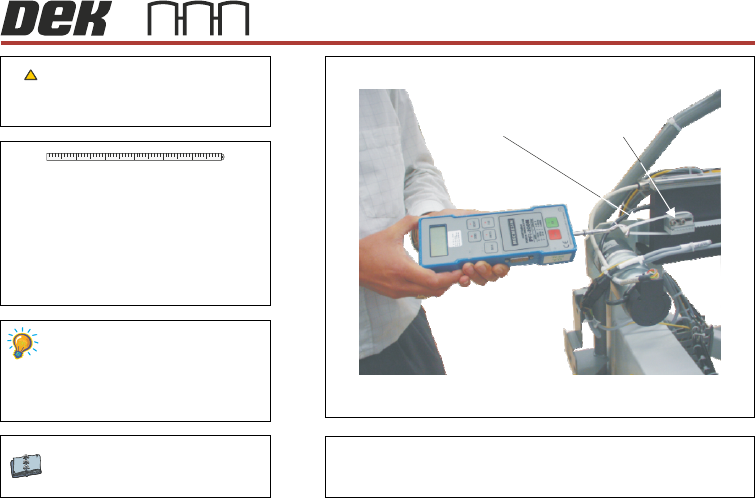

Belt Tension
Set belt tension to 12kg
Setting
Print Carriage Module
WARNING
View on Rear of Machine
12.00
Cable Tie
Rear Belt Clamp
41 52 63
23
