Selecting the Original Table

When either Device Change or Changeover mode is selected, the device table

to be used in production first must be selected.

Procedure

1. Select [Operation] in the [Main] screen.

2. At the [Original Table] section, selct the device table which has

production priority as either “Stage 1” or “Stage 2”.

3. Press [Close] to return to the [Main] screen.

Chapter 3: Preparing for Production

Preliminary

3-11CP-842E/842ME Operator’s Guide

Part Settings

CP-7-series feeders are compatible with the CP-8-series, however, for certain

reel sizes, a CP-7-series reel holder is required.

Refer to the separate “CP Feeders Mechanical Reference” regarding the

procedure for setting parts.

The sticker that is affixed to the side of each feeder is printed with a code

indicating the standards for that feeder.

Example: W D 08 04 - - - - -

W: Indicates that the feeder can be used on the CP-8 series.

D: This indicates the feeder is a paper tape feeder while "E" represents an

embossed tape feeder.

08: This indicates that a tape with a width of 8 mm can be set on the feeder.

04: This signifies that the pitch of the feeder is 4 mm.

3.4 Parts

Chapter 3: Preparing for Production

Preliminary

3-12 CP-842E/842ME Operator’s Guide

Feeder Settings

Refer to the production program device data so that no mistakes are made

when feeders are loaded.

Procedure

WARNING

Be sure to turn the 200V power off before performing this

procedure.

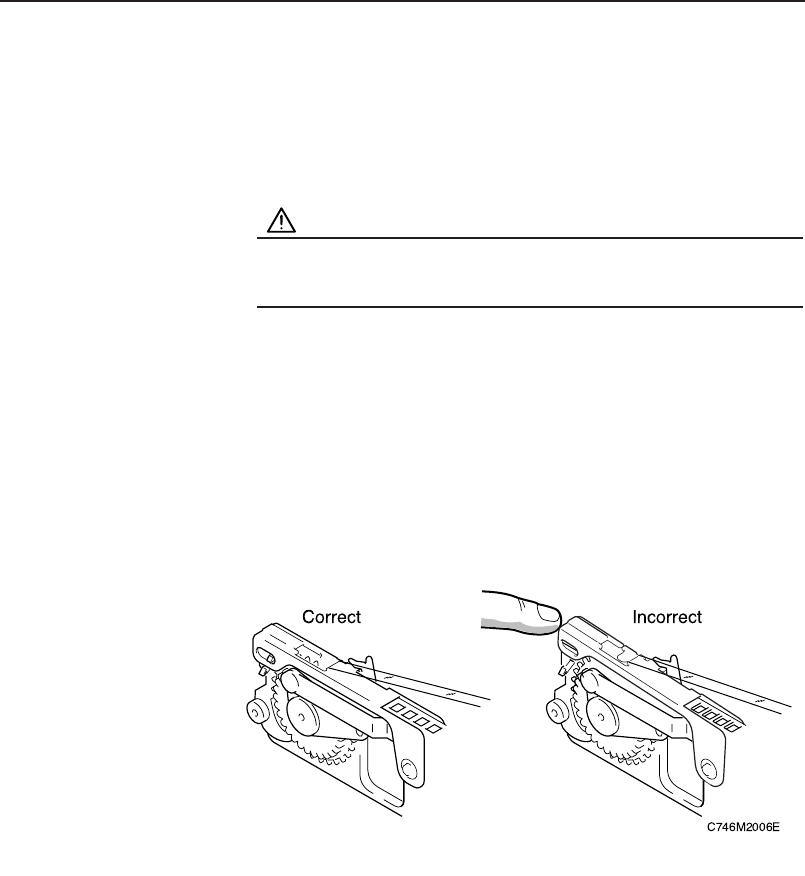

1. Verify that the tape guide is not deformed.

2. Place the various part tapes in their dedicated feeders.

If a part tape is placed in the wrong feeder, the tape guide may not close

properly.

3. Check that there are no foreign objects in the pallet groove or on

the base of the feeder, and use a cloth to wipe the surfaces

clean as required.
