Frequency
Once a month
Procedure
WARNING
• Turn the 200V power off before performing this proce-
dure.
• Rotation may occur (caused by spring action) if the cam
axis is not at its origin position (0-degrees).
Use special care when working inside the machine as
this is a dangerous area.

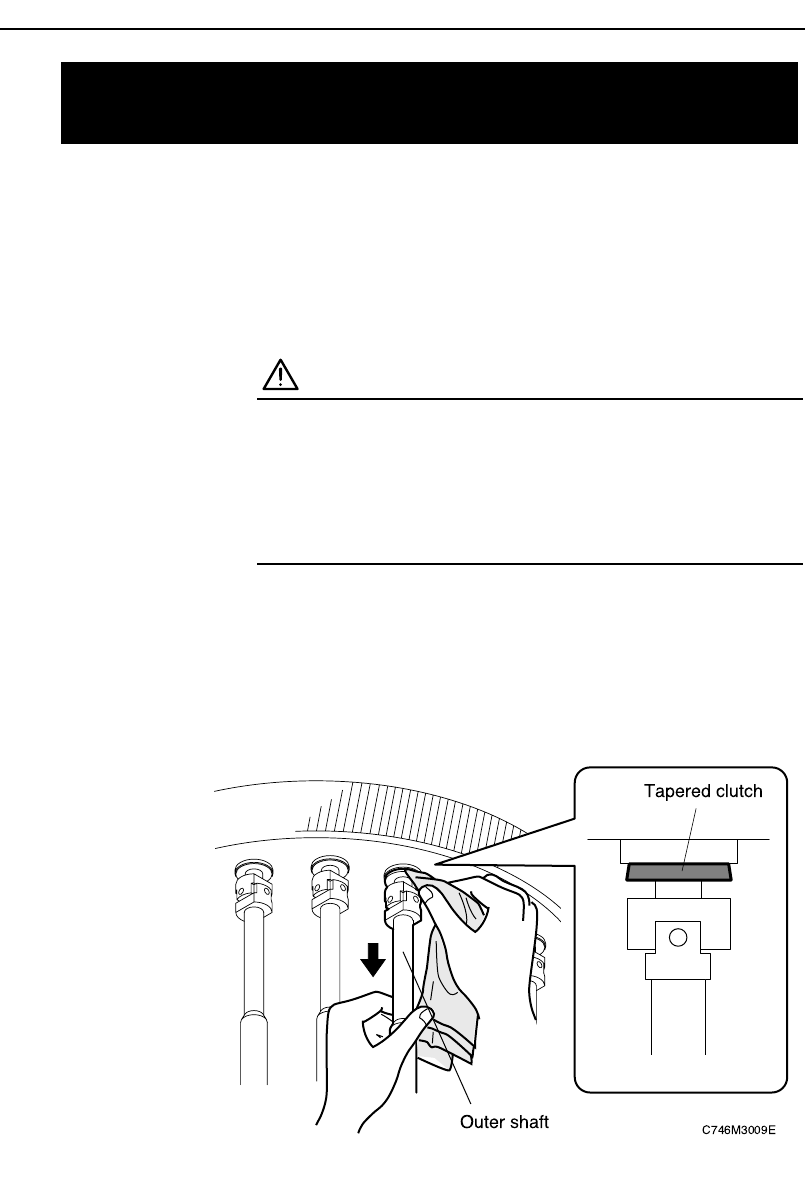

While pulling down the outer shaft which covers the nozzle indexing shaft,
wipe the tapered clutch (all the way around) with a cloth on which the degreas-
ing agent (Threebond2706) has been applied.
Note: Do not spray the degreasing agent directly onto the tapered clutch,
because spraying is inaccurate. (The agent could land on other compo-
nents, removing the lubricant which they require.)
7.8 Cleaning the Tapered Clutch on the
Nozzle Indexing Shaft
Chapter 7: Maintenance
Preliminary
7-9CP-842E/842ME Operator’s Guide
Frequency
Once a month
Procedure
WARNING
Be sure to turn the 200V power off before performing this
procedure.
• Use a vacuum cleaner to remove the foreign objects from the machine inte-
rior.
• Use a dry cloth to wipe grease off of all areas not specified as lubrication
points.
Note: Do not use an air gun within the machine as dust or other small fragments
may be blown into other areas of the machine.
7.9 Cleaning the Inside of the Machine
Chapter 7: Maintenance
Preliminary
7-10 CP-842E/842ME Operator’s Guide
Chapter 8
Production Support Functions
8.1 Manual Operation of Servo Control Axes
8.2 Setting the Production Start Sequence
8.3 Loading a New Panel
8.4 Unloading Panels From the XY-table
8.5 Unloading All Panels
8.6 Moving to the Panel Loading/Unloading Position on the XY-Table
8.7 Panel Lifter Up/Down
8.8 Main Conveyor Clamping/Unclamping
8.9 Step Mode Panel Loading
8.10 Loading Panels to In-Carrier
8.11 Loading Panels to the Main Conveyor
8.12 Unloading Panels to the Out-Carrier
8.13 Unloading Panels to the Out-Lifter
8.14 Clearing the Production Quantity Count
8.15 Skipping Boards
8.16 Pass Mode Operation
8.17 Nozzle Skip
