Feeder Settings Refer to the production program device data so that no mistakes are made when feeders are loaded. Procedure W ARNING Be sure to turn the 200V power off before performing this procedure. 1. V erify that th…
Part Settings
CP-7-series feeders are compatible with the CP-8-series, however, for certain
reel sizes, a CP-7-series reel holder is required.
Refer to the separate “CP Feeders Mechanical Reference” regarding the
procedure for setting parts.
<Explanation of the feeder stickers>
The sticker that is affixed to the side of each feeder is printed with a code
indicating the standards for that feeder.
Example: W D 08 04 - - - - -
W: Indicates that the feeder can be used on the CP-8 series.
D: This indicates the feeder is a paper tape feeder while "E" represents an
embossed tape feeder.
08: This indicates that a tape with a width of 8 mm can be set on the feeder.
04: This signifies that the pitch of the feeder is 4 mm.
3.4 Parts
Chapter 3: Preparing for Production
Preliminary
3-12 CP-842E/842ME Operator’s Guide
Feeder Settings
Refer to the production program device data so that no mistakes are made
when feeders are loaded.
Procedure
WARNING
Be sure to turn the 200V power off before performing this
procedure.
1. Verify that the tape guide is not deformed.
2. Place the various part tapes in their dedicated feeders.
If a part tape is placed in the wrong feeder, the tape guide may not close
properly.
3. Check that there are no foreign objects in the pallet groove or on
the base of the feeder, and use a cloth to wipe the surfaces
clean as required.
Chapter 3: Preparing for Production
Preliminary
3-13CP-842E/842ME Operator’s Guide

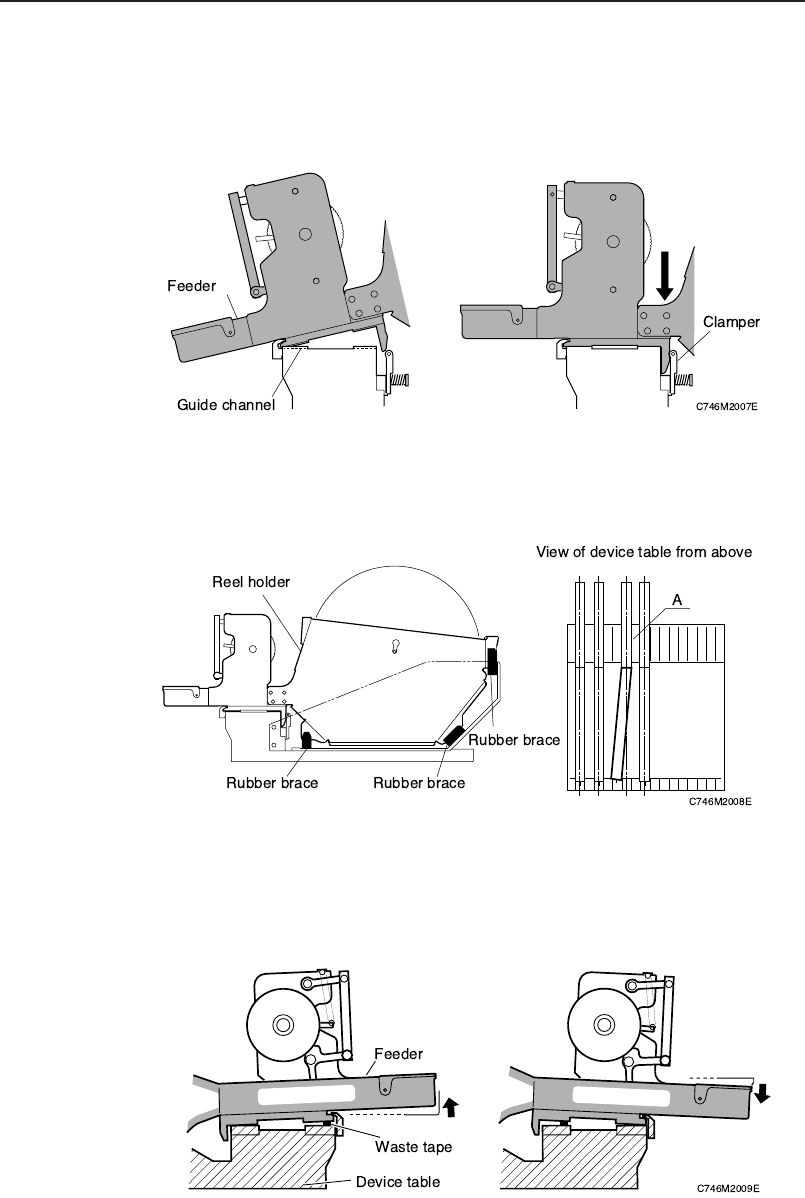

4. Set the feeder on the pallet. Be sure the guide ridge on the
bottom of the feeder fits properly into the slot on the pallet. Push
the feeder forward and then push down to clamp the feeder in
place.
In the case of 13, 15-inch parts reels, fix the reel holder using the steady braces
on the pallet (3 places). Ensure that the feeder itself and the reel holder are in
the same device slot, as failure to set correctly (see feeder A below) can cause
feeder errors.
5. When setting a feeder on a device table, be sure that there is no
foreign matter (waste tape, etc) between the feeder and the
device table. Remove any foreign matter which has adhered to
the device table grooves or to the bottom of the feeder.
