Configuring TCP/IP
60 SIPLACE Uptime LT Installationsanleitung / Installation Manual
Al the key elements are already installed:
The Microsoft networks client (which enables you to establish connections to other Windows
computers)
The file and printer share functions (which enable the provision of network resources)
The QoS package scheduler (which optimizes the network traffic)
And the TCP/IP protocol.
Subsequent installation of network components
If you accidentally lose one of the components, due to unintentional deinstallation etc., this can then be
set up again later on.
Client for Microsoft networks

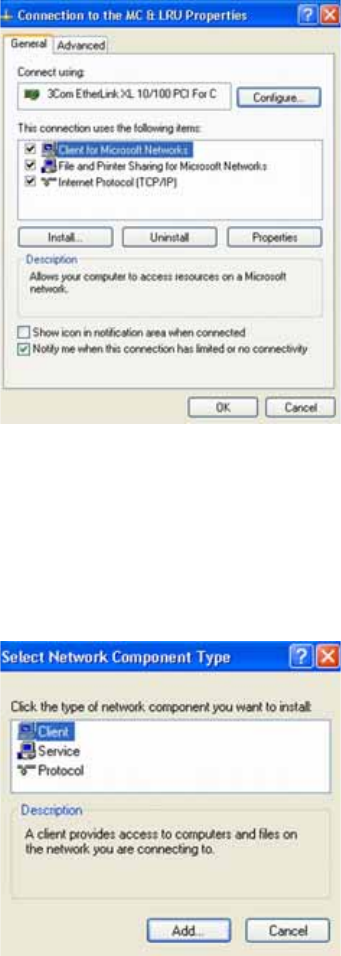

X Click on INSTALL - CLIENT - ADD - CLIENT FOR MICROSOFT NETWORKS.
X Click on OK and then on CLOSE.
File and printer release
X Click on INSTALL - SERVICE - ADD - FILE AND PRINTER SHARING FOR MICROSOFT
NETWORKS.
X Click on OK and then on CLOSE.
QoS package scheduler
X Click on INSTALL - SERVICE - ADD - QOS PACKAGE SCHEDULER.
X Click on OK and then on CLOSE.
The TCP/IP protocol can not be deinstalled.
Installation of a Network
Configuring TCP/IP
SIPLACE Uptime LT Installationsanleitung / Installation Manual
61
TCP/IP
For your computer to exchange data, you need to speak a common language. This is what network
protocols are for.They define the rules for communication. The most common and frequently used is the
TCP/IP protocol. This only involves making a few simple settings.
IP address and subnet mask
The most important entry is the IP address.This gives each computer a unique address with which it can
be addressed in the network. This address consists of four numbers between 0 and 255, which are each
separated by a dot. The computers are therefore numbered consecutively.
The subnet mask then defines the network to which each computer belongs. This is especially important
in larger networks, which are frequently subdivided into multiples subnets.In your relatively small
network, all computers will belong to the same network.
Internet
The internet is a large TCP/IP network, which is also based on IP addresses. In this case, the addresses
once again need to be unique. This means that two or more computers may not have the same IP
addresses. When you enter the internet, you need to ensure that your network is not using an address
which is already present on the internet. For this purpose, there are certain address ranges which your
network can use without problems, e.g. • 192.168.0.X
For computer X set a number between 1 and 254. Select 255.255.255.0. as subnet mask.
Now define the IP address and subnet mask:
X Right-click with the mouse on your LAN connection again and select PROPERTIES.
X Mark the entry INTERNET PROTOCOL (TCP/IP) and select PROPERTIES.

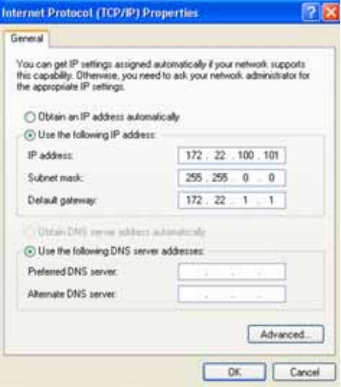

X Click on USE THE FOLLOWING IP ADDRESS and enter your combination of numbers. Begin with
192.168.0.1 and then proceed to 192.168.0.2 for the second computer, 192.168.0.3 for the third one
and so on. The subnet mask remains the same for all computers. Accept the suggested
255.255.255.0.
X Click on OK and then on CLOSE.
Installation of a Network
Defining the Computer Name/Workgroup
62 SIPLACE Uptime LT Installationsanleitung / Installation Manual
3.4 Defining the Computer Name/Workgroup
Irrespective of the protocol used, each computer also needs a name and the assignment to a workgroup.
As in the case of the IP address, the computer name also needs to be unique and may only occur once
in your workgroup.
X Click on START - CONTROL PANEL, PERFORMANCE AND SERVICE and then select SHOW
BASIC INFORMATION ABOUT THE COMPUTER.
If you have chosen the classic control panel view, click on SYSTEM instead.
X Select the COMPUTER NAME tab and enter a description of your computer, if needed. If you then
click on CHANGE, you can define the computer name and workgroup.
X Assign each computer a different and clear name.
X Assign each computer to the same workgroup.
X Click on OK.
X If everything is correct, the computer will be added to the workgroup. Click on OK.
X You now need to reboot your computer. This enables the changes made. Click on OK and then again
on OK to reboot.
