Windows XP Unattended Setup DVD V4.2 11/2015 Edition
16
→ Hit the ENTER key two times to save the changes and exit
4.1.4 Kontron KISS KTQ45
The following picture shows the ports of the Kontron KISS KTQ45 computer.
Legend:
1: PS/2 connectors for keyboard (purple) and mouse (green)
2: USB 2.0 ports
3: Onboard LAN for SIPLACE LAN
4: Additional Onboard LAN (e.g. for connection to GEM)
5: Display connector (VGA).
1
2
3
2
4
5
6
6
Windows XP Unattended Setup DVD V4.2 11/2015 Edition
17
6: Onboard serial (COM) ports.
Before beginning with installation, you have to set/verify the BIOS settings of the computer.

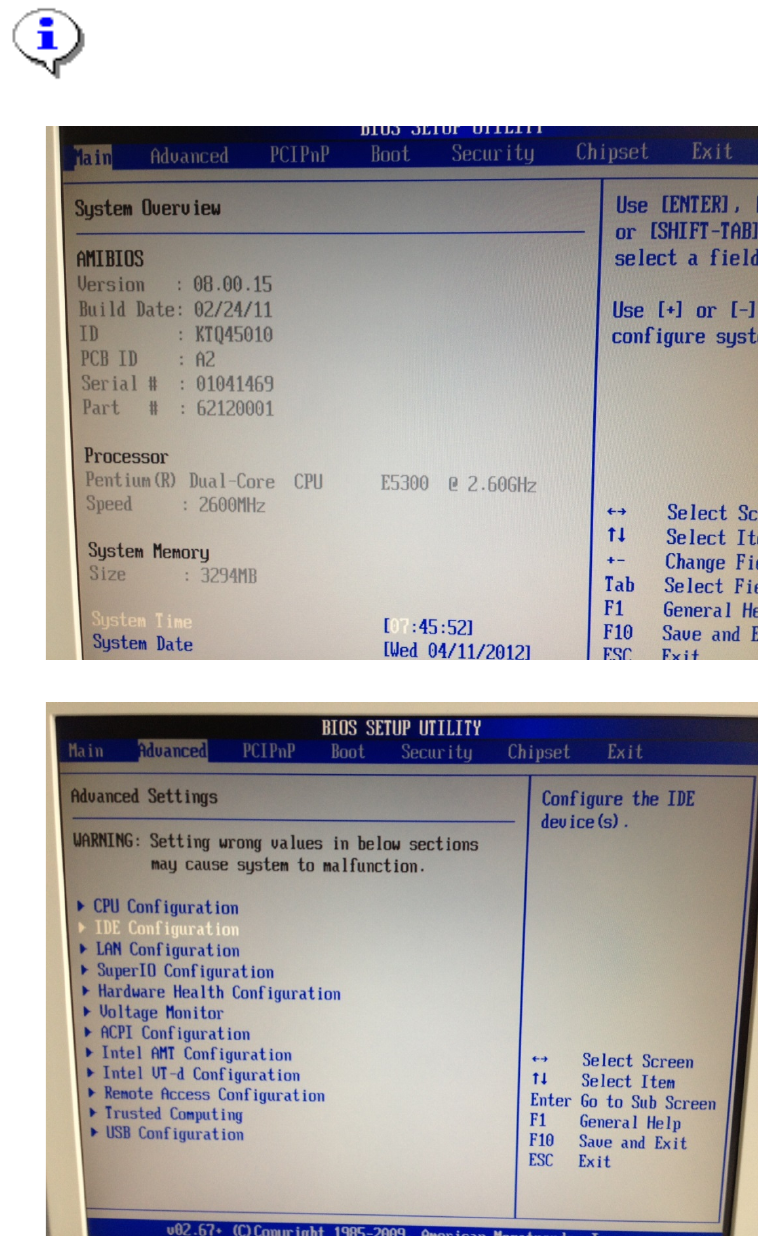

→ Power on the computer and hit DEL during the boot process.
Note:
This computer boots very fast. The best way to enter BIOS is to hit DEL multiple times after
powering on ensuring you don’t miss the right moment.
→ Hit the cursor right key until “Advanced” is highlighted.
→ Hit the cursor down key until “IDE Configuration” is highlighted.
→ Hit the ENTER key.
Windows XP Unattended Setup DVD V4.2 11/2015 Edition
18

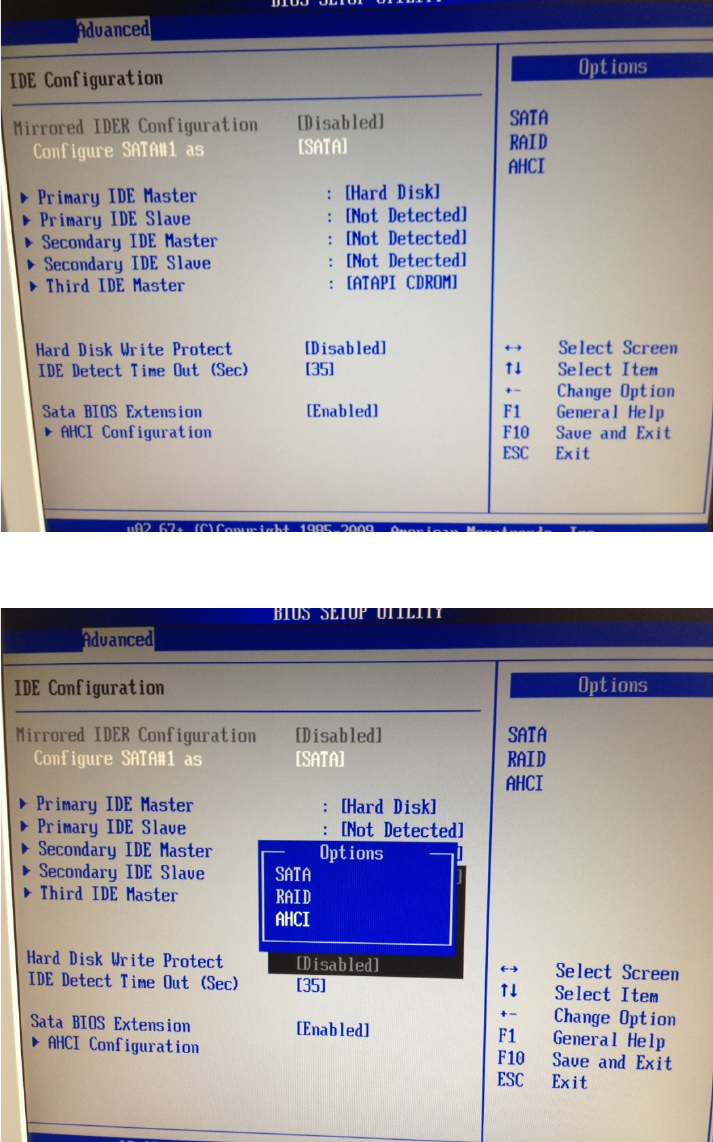

→ Ensure “Configure SATA#1 as” is selected and hit the ENTER key to change the setting.
→ Select the option “AHCI” and hit ENTER.
After that, the window should look like this.
