Windows XP Unattended Setup DVD V4.2 11/2015 Edition
54
→ If you want to delete the selected entry, click the Delete entry button.
→ You can change the name of the selected entry in the field Name.
→ You can change the IP address of the selected entry in the field IP- Address.
→ Click the OK button to apply your changes.
→ If you want to reset the default settings, click the Reset button.
4.2.10 Touchscreen

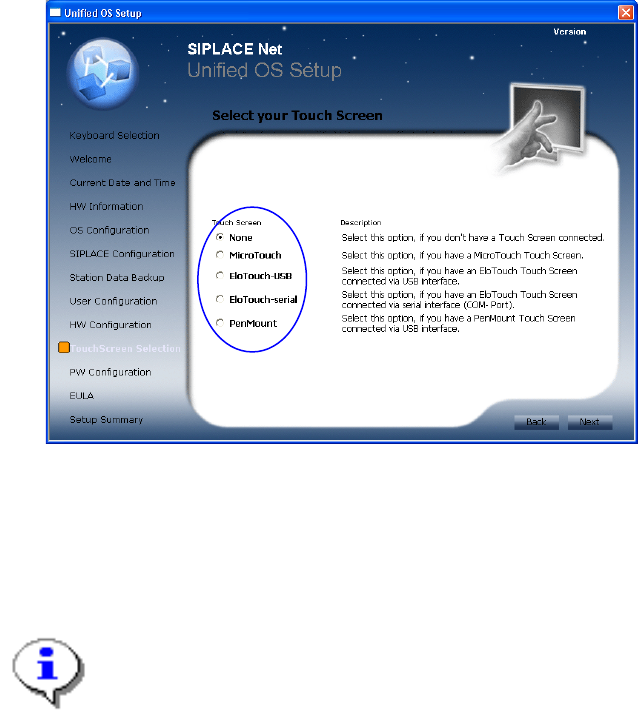

Fig. 13 Touch Screen selection
This screen appears only if you have selected “Station computer” usage (see chapter 4.2.6 SIPLACE
Configuration).
→ Choose the appropriate touch screen, for example “Elo Touch-serial”.
Note:
Please ensure you’ve connected the touch screen before starting installation! You will have
installation problems if you select a touch screen without having it connected. Select “None”
if you can’t connect the touchscreen this time. You may install it later anytime using the
appropriate driver package from the directory C:\Tools\Touch.
→ Click the Next button to continue.
Windows XP Unattended Setup DVD V4.2 11/2015 Edition
55
4.2.11 Password Configuration
Fig. 14 Password Configuration
This screen appears only if you selected a Line Computer usage (see chapter 4.2.6 SIPLACE
Configuration).
→ Choose the password complexity to be used for created accounts.
Note:
Please choose an uniform setting on all involved computers to avoid problems!
→ Click the Next button to continue.
Windows XP Unattended Setup DVD V4.2 11/2015 Edition
56
4.2.12 End User License Agreement (EULA)
The following dialog is displayed:
Fig. 15 EULA
→ Read the license agreement carefully.
→ Select the Accept radio button to accept the EULA.
→ Click the Next button to continue.
4.2.13 Summary and Installation
The following dialog is displayed:
Fig. 16 Summary and Installation
→ Verify the summarized information about the ongoing installation procedure carefully.
→ To agree with the selected configuration and start the installation, click the Install button.
The following warning message is displayed:
