SIPLACE D4 Detailed Circuit Diagrams Folder
12/2006 US Edition
0 - 5
0.1.20 Blocksymbole für Leistungsumrichter /
Block symbols for power converters
0.1.21 Primärzellen und Akkumulatoren / Primary cells and accumulators
0.1.22 Kontakte mit zwei oder drei Schaltstellungen /
Contacts with two or three positions
0.1.23 Voreilende und nacheilende Kontakte / Early and late operating con-
tacts
0.1.24 Handbetätigte Schalter / Single-pole switches
0.1.25 Elektromechanische Antriebe / Operating devices
Nr. / No. Schaltzeichen / Symbol Beschreibung Description
06-14-03 Gleichrichter Rectifier
06-14-04 Gleichrichter in Brückenschaltung
Rectifier in full wave (bridge) con-
nection
Nr. / No. Schaltzeichen / Symbol Beschreibung Description
06-15-01
Primärzelle
Anmerkung:
Die längere Linie kennzeichnet den
positiven Pol, die kürzere den negati-
ven. Die kürzere Linie darf zur Verdeut-
lichung breiter gezeichnet werden.
Primary cell or accumulator
Note:
The longer line represents the posi-
tive pole, the short line the negative
pole. The short line may be thick-
ened for emphasis.
Nr. / No. Schaltzeichen / Symbol Beschreibung Description
07-02-01
Schließer
Schaltfunktion, allgemein
Schalter
Make contact
07-02-02
Schließer
Schaltfunktion, allgemein
Schalter
Make contact
07-02-03 Öffner Break contact
Nr. / No. Schaltzeichen / Symbol Beschreibung Description
07-04-01
Voreilender Schließer (eines Kontakt-
satzes), der relativ zu anderen Kontak-
ten des Kontaktsatzes früher schließt
Make contact (of a multiple contact
assembly) which is early to close
relative to the other contacts of the
assembly
07-04-02
Nacheilender Schließer (eines Kontakt-
satzes), der relativ zu anderen Kontak-
ten des Kontaktsatzes später schließt
Make contact (of a multiple contact
assembly) which is late to close rel-
ative to the other contacts of the
assembly
07-04-03
Nacheilender Öffner (eines Kontaktsat-
zes), der relativ zu anderen Kontakten
des Kontaktsatzes später öffnet
Break contact (of a multiple contact
assembly) which is late to open rela-
tive to the other contacts of the
assembly
07-04-04
Voreilender Öffner (eines Kontakt-
satzes), der relativ zu anderen Kontak-
ten des Kontaktsatzes früher öffnet
Break contact (of a multiple contact
assembly) which is early to open rel-
ative to the other contacts of the
assembly
Nr. / No. Schaltzeichen / Symbol Beschreibung Description
07-07-01 Handbetätigter Schalter, allgemein
Manually operated switch,
general symbol
07-07-02
Druckschalter (nicht rastend)
Taster
Push-button switch (non-locking)
07-07-04 Drehschalter (rastend) Turn-switch (locking)
Nr. / No. Schaltzeichen / Symbol Beschreibung Description
07-15-01
Elektromechanischer Antrieb, allgemein
Relaisspule, allgemein
Operating device, general symbol
07-15-21
Elektromechanischer Antrieb eines
Thermorelais
Actuating device of a thermal relay
SIPLACE D4 Detailed Circuit Diagrams Folder
12/2006 US Edition
0 - 6

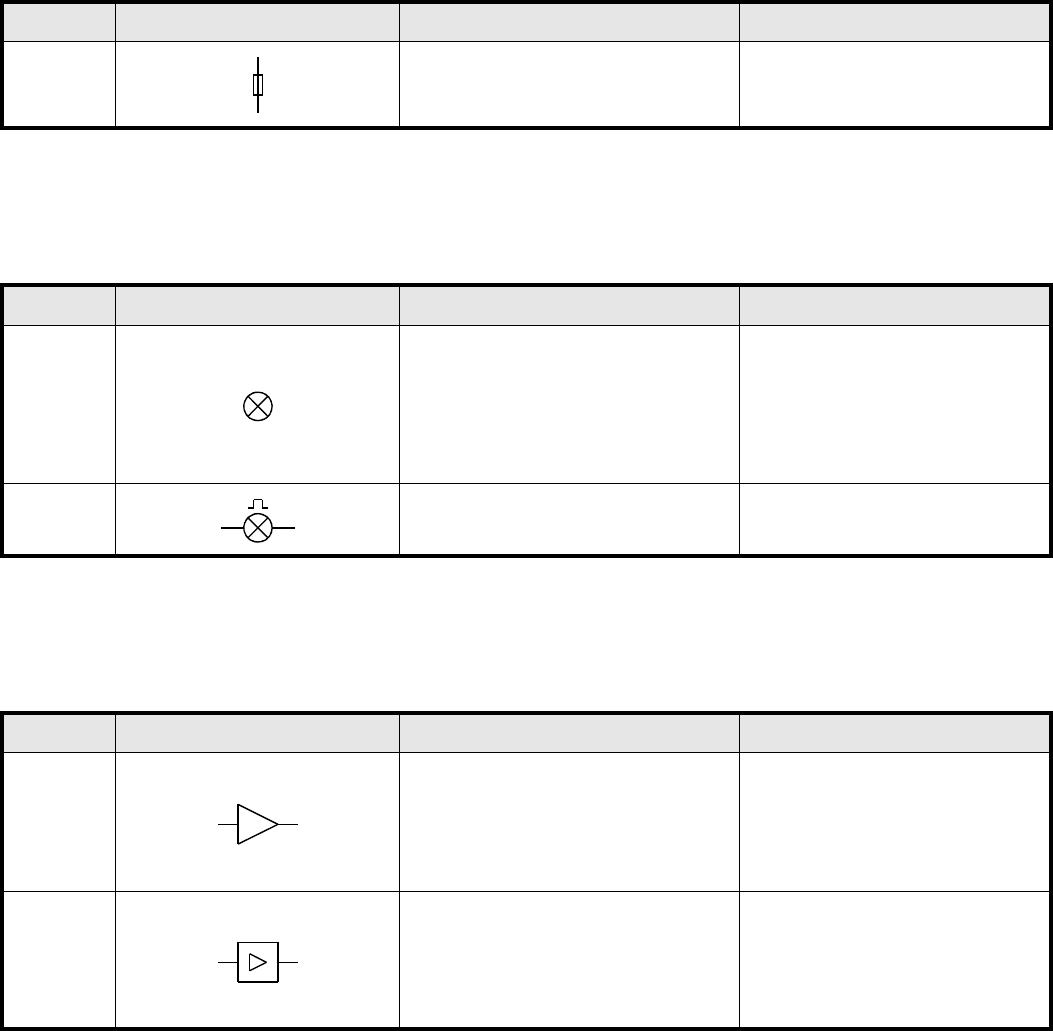

0.1.26 Sicherungen und Sicherungsschalter / Fuses and fuse-switches
0.1.27 Leuchtmelder und Signaleinrichtungen / Lamps and signalling devices
0.1.28 Verstärker / Amplifiers
Nr. / No. Schaltzeichen / Symbol Beschreibung Description
07-21-01 Sicherung, allgemein Fuse, general symbol
Nr. / No. Schaltzeichen / Symbol Beschreibung Description
08-10-01
Lampe, allgemein
Leuchtmelder, allgemein
RD rot
YE gelb
GN grün
BU blau
WH weiß
Lamp, general symbol
Signal lamp, general symbol
RD = red
YE = yellow
GN = green
BU = blue
WH = white
08-10-02 Leuchtmelder, blinkend Signal lamp, flashing type
Nr. / No. Schaltzeichen / Symbol Beschreibung Description
10-15-01
Verstärker, allgemein
dargestellt mit Ein- und Ausgang
Anmerkung:
Die Spitze des Dreiecks muß in die
Übertragungsrichtung zeigen.
Amplifier, general symbol
Repeater, general symbol
shown with input and output
Note:
The triangle is pointed in the direc-
tion of transmission.
10-15-02
Verstärker, allgemein
dargestellt mit Ein- und Ausgang
Anmerkung:
Die Spitze des Dreiecks muß in die
Übertragungsrichtung zeigen.
Amplifier, general symbol
Repeater, general symbol
shown with input and output
Note:
The triangle is pointed in the direc-
tion of transmission.
SIPLACE D4 Detailed Circuit Diagrams Folder
12/2006 US Edition
0 - 7
0.2 Structure of the Technical Numbering System
Document number
A document number consists of an item number, product status, document status, document type, language and for-
mat.
Item number
An item number consists of master number and function status.
Function status (FS) = versions relevant to function
All documents pertaining to an item number have the same functions status. The versions of a product relevant to func-
tion are determined by the totality of the features describing the function and documented in the corresponding docu-
mentation.
Product status (PS)
The versions of a product not relevant to function are determined by the totality of the remaining features (no features
with relevance to function) and documented in the corresponding documentation.
Document status (DS)
The status of the contents of a technical document
Document type (DT)
Language
Format
A Installation diagram, electrical B Construction specifications, electrical
E
Adjustment specifications, testing and inspection
instructions, setting specifications
F Movement diagram, general functions drawing
G Machine identification plate K Terminal diagram, cable diagram, wires list
L Circuit Diagram M Assembly diagram, installation diagram, mechanical
Document number
Item number
Example 00324139 - 02 01 04 Z D 3
Pattern
NNNNNNNN
-
NN NN NN
AAN
Master number S FS PS DS DT L F
Separator = - for standard part
Separator = S for service part
Function status as per SN 10370, Part 1
Product status as per SN 10370, Part 1
Document status as per SN 10370, Part 1
Document type
Language
Format
N = Numerical counting position
A = Alphabetic counting position
N Master pattern, layout, inscription P Program documentation
R Product description S Parts list
T Parts drawing U Documentation overview
V Construction specifications, mechanical W Hydraulics diagram
X Pneumatics diagram Z Assembly, mechanical
D German E English
F French I Italian
N Dutch S Spanish
X German/English Y German/Italian
0A0 1 A1
2A2 3 A3
4A4
