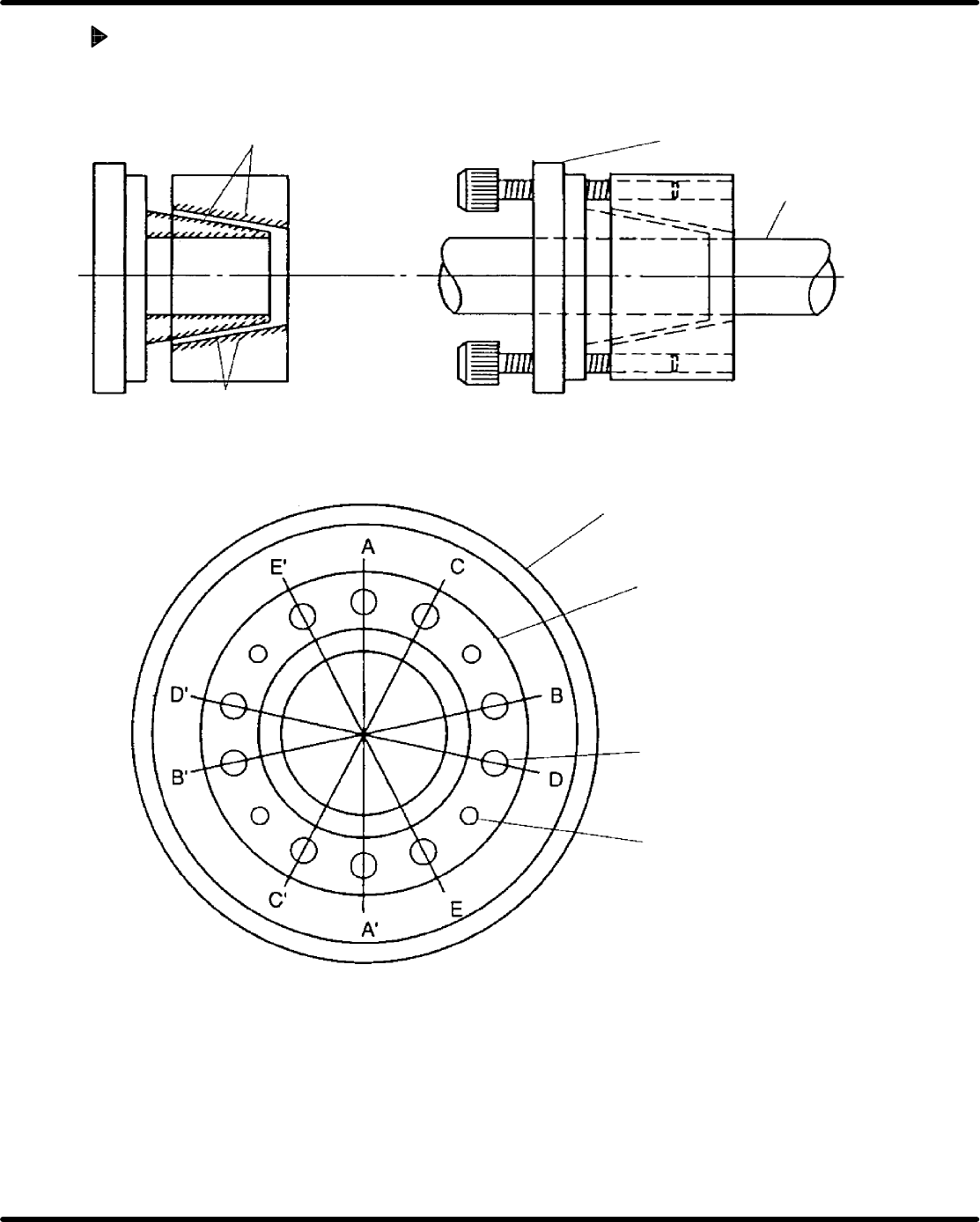

6.10 Mechanical Lock Composition and Handling
SERVICE MANUAL
AVK3
6.10−2
D77SEC−85−220−A0
Tighten the bolts
=NOTE=
Wipe away oil from new parts.
Oil
Oil
Flange
Shaft
1. Tighten all of the mechanical bolts remover in an opposing manner.
• The bolts should be uniformly tighten a little at a time.
Timing pulley
Mechanical lock
Mechanical lock bolt
Screws for lock release
2. Check that all bolts are securely tightened.
D00AEC−0A−100−B4
