6.6 SC Timer T able SERVICE MANUAL A VK3 6.6−2 D77SEC−85−030−A0 T M Functions Standard setting (SEC) TM30 5.00 JW set return action TM31 0.10 Loader belt reverse action TM32 1.00 Option TM33 1.00 Division transfer start …
6.6 SC Timer Table
SERVICE MANUAL
AVK3
6.6−1
D77SEC−85−030−A0
6.6 SC Timer Table
D77SEC−85−030−A0
Sentence No.
TM
Standard
setting
(SEC)
Functions
TM1 1.80 L. STOP check
TM2 0.05 Carry miss check
TM3 0.50 H axis brake release action
TM4 1.00 Dust collection action
TM5 0.50 Warning lamp blink 1
TM6 0.50 Warning lamp blink 2
TM7 0.50 Loader belt motor action
TM8 0.10 PCB transfer traverse action
TM9 0.10 Loader / unloader action
TM10 5.00 Loader rail down action
TM11 5.00 Loader rail up action
TM12 5.00 Unloader rail down action
TM13 5.00 Unloader rail up action
TM14 5.00 Positioner lever down action
TM15 5.00 Positioner lever up action
TM16 0.20 Chuck slide stop action
TM17 5.00 PCB Transfer traverse action
TM18 5.00 PCB Transfer return action
TM19 10.00 Loader rail load action
TM20 10.00 Unloader rail load action
TM21 15.00 PCB wait
TM22 5.00 P. PULL traverse action
TM23 5.00 P. PULL return action
TM24 5.00 P. PUSH traverse action
TM25 5.00 P. PUSH return action
TM26 0.50 ZR parts change demand
TM27 5.00 Chuck slide traverse action
TM28 5.00 Chuck slide return action
TM29 5.00 JW set traverse action
6.6 SC Timer Table
SERVICE MANUAL
AVK3
6.6−2
D77SEC−85−030−A0
T M Functions
Standard
setting
(SEC)
TM30 5.00 JW set return action
TM31 0.10 Loader belt reverse action
TM32 1.00 Option
TM33 1.00 Division transfer start
TM34 0.50 Vacuum suction
TM35 5.00 Coupling traverse action 1
TM36 5.00 Coupling return action 1
TM37 5.00 Coupling traverse action 2
TM38 5.00 Coupling return action 2
TM39 5.00 Buzzer output action
TM40 1.00 ZL parts exhaust finish
TM41 1.00 ZR parts exhaust finish
TM42 5.00 PCB position (R) traverse
TM43 0.10 Positioner lever action
TM44 5.00 Chuck slide traverse action
TM45 5.00 Chuck slide return action
TM46 0.50 Maintenance action 1
TM47 0.80 Parts change motor power cut
TM48 0.50 ZL parts exhaust finish
6.7 List of P783 Jumper Settings
SERVICE MANUAL
AVK3
6.7−1
D77SEC−85−040−A0

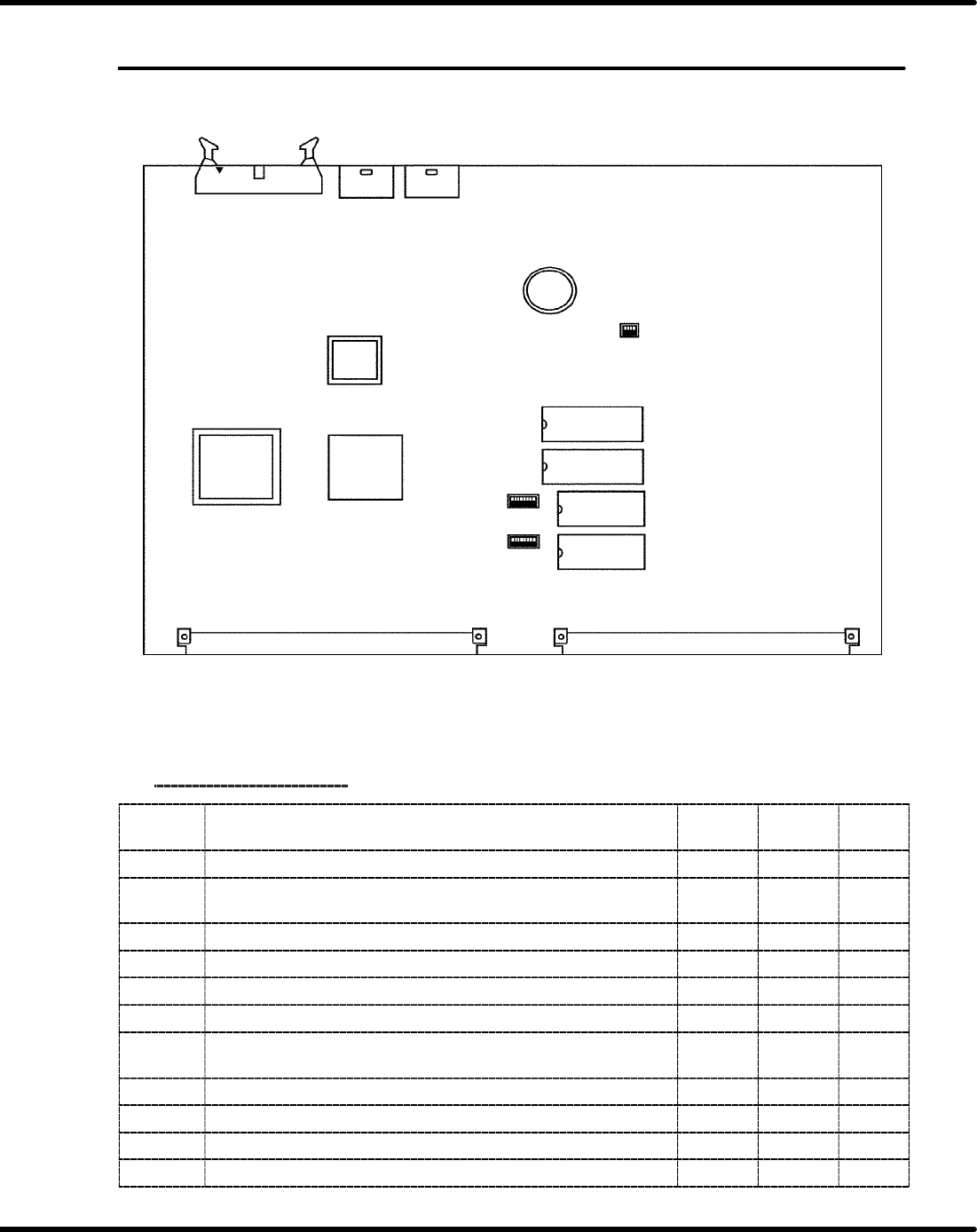

6.7 List of P783 Jumper Settings
D77SEC−85−040−A0
Sentence No.
MMC JA-M00006
CN1
LP2 LP1
BT1
SW3
ON
14
SW1
ON
1
8
SW2
ON
1
8
EPM
7032
EPM7128
Am486DX4
27C1001
SYS EVEN
27C1001
SYS ODD
27C256
BOOT EVEN
27C256
BOOT ODD
=NOTE=
SW2−8 ON : Enable the bootstrap (ROM)
DIP SW details
meaning
SW No.
Function OFF ON Set-
ting
SW1−1 AVK2B / JVK3 select AVK2B JVK3 OFF
SW1−2 JW Waste Decreese Spec. Setting Not
enable
Enable ON
SW1−3 Not use OFF Not use OFF
SW1−4 Z station nunumber setting OFF Not use OFF
SW1−5 Not use 120st 60st OFF
SW1−6 Not use OFF Not use OFF
SW1−7 Multi Origin Setting Not
enable
Enable ON
SW1−8 Not use OFF Not use OFF
SW2−1 Not use OFF Not use OFF
SW2−2 Not use OFF Not use OFF
SW2−3 Not use OFF Not use OFF
