2.1 Installation Procedure
SERVICE MANUAL
AVK3
2.1−6
D77SEC−11−040−A0
Always shut OFF the machine
power switch before performing
wiring.
There is the possibility of
electric shock.
2.1 Installation Procedure
SERVICE MANUAL
AVK3
2.1−7
D77SEC−11−040−A0
2.1.5 Precision, Performance, Operation and Safety
Check
Feeder carriage safety limit operation check
1. Turn power [ON] and turn [OFF] the ”SERVO MOTOR” switch on the main control panel.
2. Check if the feeder carriage (Z axis) sensor dogs interfere with sensors.
3. Check the operation of the (+)safety limit, (−) safety limit and feeder carriage interference
safety limit.
(1) Move the left feeder carriage manually to turn [ON] the (+) safety limit.
(2) Check that the POWER switch on the main control panel is turned [OFF].
(3) Move the left feeder carriage manually to turn [OFF] the (+) safety limit.
(4) Check that the POWER switch on the main control panel is turned [ON].
(5) Check the operation of the (−) safety limit by the same procedures described above.
XY axes safety limit operation check
1. Turn the power [ON] and turn “HEAD SERVO” on the head switches [OFF].
2. Check the operation of the X axis (+), (−) safety limits and the Y axis (+), (−) safety limits.
(1) Move the XY table manually and turn the X axis (+) safety limit [ON].
(2) Check that the POWER switch on the main control panel is turned [OFF].
(3) Move the XY table manually and turn the X axis (+) safety limit [OFF].
(4) Check that the POWER switch on the main control panel is turned [ON].
(5) Check the X axis (−) safety limit and Y axis (+), (−) safety limits by the same procedures
as described above.
Emergency switch operation check
1. Check whether the emergency switch operates correctly in 5 places on the machine front
and rear.
Checking safety cover switches
1. Open and close the main cover and rear cover to check the safety switches for proper func-
tion.
2.1 Installation Procedure
SERVICE MANUAL
AVK3
2.1−8
D77SEC−11−040−A0
2.1.6 Precision and Performance Check in Manual Operation
NC control card origin offset check
1. Turn the power [OFF].
2. Check that the connection of connectors inside P783 (must not be disconnected or be
loose).
3. Turn the power [ON] and return to origin.
4. Check that the DC power voltage of P783F with volt meter.
Manual operation check
1. Check all manual switches on the sub control panel.
=NOTE=
If each cylinder speed is not proper, adjust it by the speed controller.
2. After turning all manual switches [OFF], with using the manual NC function, that each of
axes including X, Y, Z, V, W is to move by one block and in a continuous manner.
COMMON
COMMON
COMMON COMMON
COMMON
COMMON
AVK3 AVK3 AVK3 AVK3
AVK3 AVK3
COMMON COMMON
COMMON COMMON COMMON
COMMON
COMMON COMMON
COMMON
COMMON
COMMON
COMMON
COMMON
COMMON
COMMON
COMMON
COMMON
COMMON
COMMON COMMON
COMMON
COMMON
COMMON
COMMON
COMMON
COMMON COMMON COMMON
COMMON
JVK3B
26/52
PITCH
HEAD
ROTATION

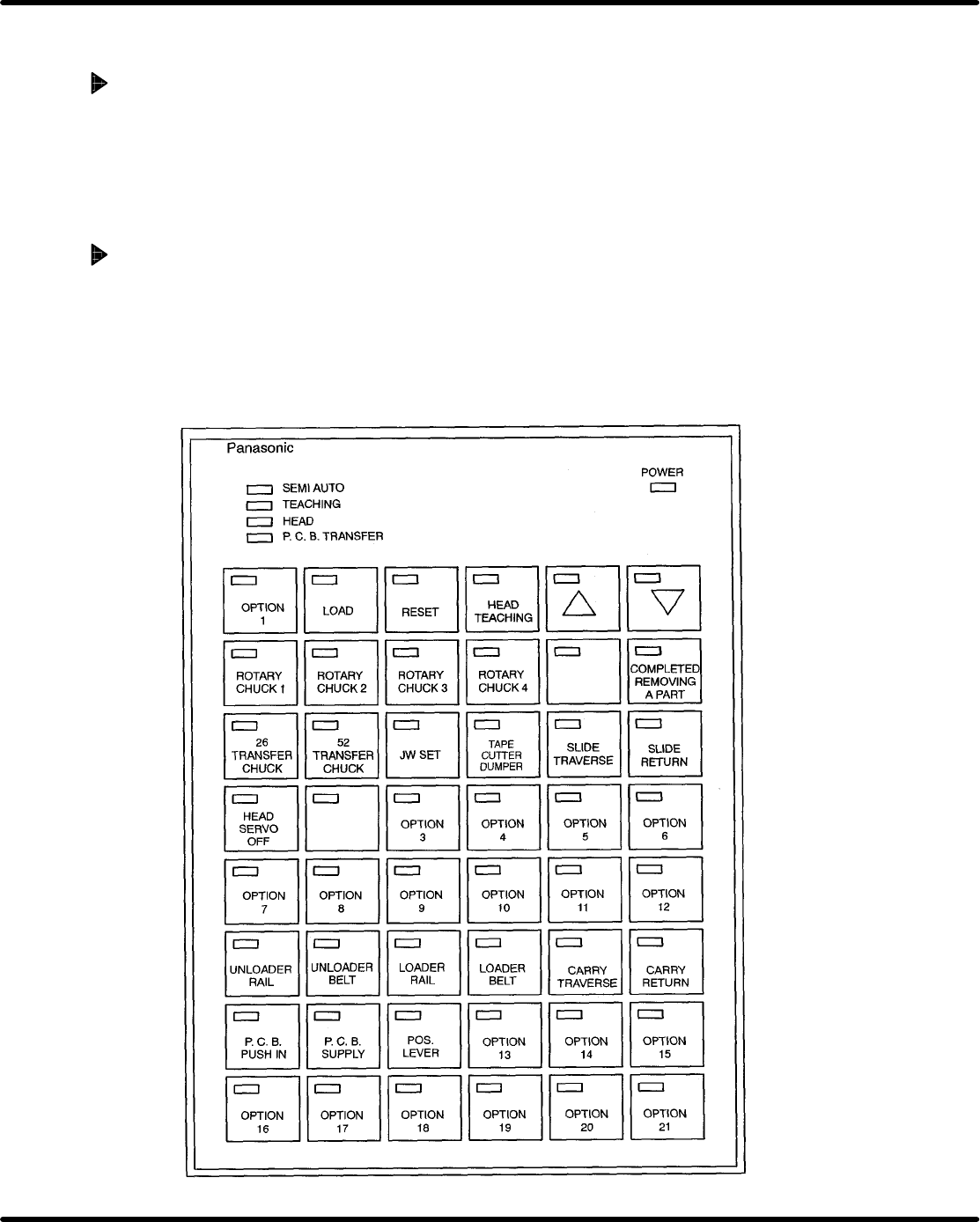

PANASERT−Avk3/JVK3B Sub Control Panel
AVK3 AVK3 AVK3 AVK3
AVK3 AVK3
