change after the design is complete. A generic test philoso- phy which has been applied to hundreds of dense SMT designs successfully . • Strategic placement of all component vias • Provide access to every node of every …

5.0 TESTABILITY

5.1 Testing Considerations

5.1.1 Bare Board Test

In testing printed board using

through hole technology, the defect rate and the test meth-

ods chosen are the principle determiners of overall test

cost. Real estate considerations (speciﬁcally the percentage

of nodes that are available for bed-of-nails probing) are not

a concern, since 100% nodal access practically comes ‘‘for

free’’. In testing surface mount boards, however, real estate

considerations (in addition to defect rates) impact test

costs, since nodal access determines which test methods

are possible and effective.

5.1.2 Loaded Board Test

Given the same test costs,

defect rate can be traded off against real estate. For

example, if the defect rate is relatively high, most boards

will require diagnosis, and the economics of Automatic

Test Equipment (ATE) will demand that full nodal access

be provided for in the board layout. If the defect rate is

low, more time can be spent diagnosing each defect manu-

ally, rather than with ATE, and thus reduce the real estate

impact to less than 100% nodal access. Extremely low

defect levels would theoretically allow 0% nodal access

(no bed of nails test at all), applying only a simple pass/no-

pass test through the edge connector, and throw away fail-

ing assemblies rather than diagnose them.

The major considerations in determining nodal access are:

• Defect rate

• Diagnostic capability

• Real estate impact

—Board area

—Layer count

• Cost impact

Determining the percentage of nodal access to design into

a board layout requires trading off all the issues discussed

previously: defect rate, test development cost, test opera-

tion costs including manual troubleshooting costs, and of

course, impacts on real estate. Short of having no defects

at all, full nodal access remains the most desirable option.

As with Through Hole Technology boards, once the board

is designed (nodal access ﬁxed) and its tests are designed

(test methods ﬁxed), the defect rate becomes the primary

key to reducing test costs. Therefore, defect reporting,

analysis, and correction/prevention are imperative. This

may involve closer supplier relationships to reduce compo-

nent and board level problems, and in-house action to

reduce process-induced problems.

5.2 Nodal Access

In the early stages of product develop-

ment cycles, test philosophies and strategies are often

undeﬁned. This is especially true when a company is mov-

ing from one level of packaging technology to the next

higher level of packaging technology, for example, from

through-hole technology to surface mount technology. Dur-

ing these transition periods, the concurrent engineering

approach is essential for designing nodal access for test-

ability into the product. Concurrent engineering is the prin-

ciple vehicle by which test priorities can and should be

moved up to the beginning of the design cycle and

addressed with a higher priority. In the early stages of a

design, a test philosophy should be clearly deﬁned, then a

strategy for executing the tests can be implemented. An

ideal philosophy to adopt is one that identiﬁes all of the

different test types and the level of test that each type

requires.

There are 2 basic categories of PB tests: The bare board

test, and the loaded board test. The bare board test is per-

formed at the end of the fabrication cycle and checks for

shorts, opens, and net list connectivity. The loaded board

tests occur at the end of the assembly cycle and are consid-

erably more complex. They include: Manufacturing

Defects Analyzer (MDA), in-circuit, functional and combi-

national tests.

The test philosophy should be written to encompass what-

ever combination of tests are necessary for the product.

Then, a simple strategy for implementing the required tests

can be deﬁned prior to beginning the design process. Plan-

ning testability at the beginning of a product development

cycle instead of the end can result in signiﬁcantly lower

test costs per node and provide higher nodal accessibility

throughout the entire process from initial design to ﬁnal

test.

5.2.1 Five Types of Testing

There are ﬁve basic types of

tests which can be performed on SMT boards. These are:

• Bare Board Test

Check the unpopulated board for shorts and opens

• Manufacturing Defects Analysis

Checks the populated board for soldering shorts

• In-Circuit Test

Operational veriﬁcation of each individual component

• Functional Test

Operational veriﬁcation of functional block of circuits

• Combinational Test

Limited integration of in-circuit and functional test

The ﬁrst test type is a bare board test which is performed

by the board fabricator. The remaining four test types are

loaded on assembled board tests which are performed after

assembly. The bare board test should be mandatory, while

the loaded board may be tested using any combination of

the four loaded board tests.

5.2.2 Test Philosophy

The best test philosophy to adopt

is one that will make provision for executing every test

type available. Even if the product testing procedure is well

deﬁned at the beginning of the development cycle, it may

December 1999 IPC-SM-782A

电子技术应用　　　　　ｗｗｗ．ＣｈｉｎａＡＥＴ．ｃｏｍ

change after the design is complete. A generic test philoso-

phy which has been applied to hundreds of dense SMT

designs successfully.

• Strategic placement of all component vias

• Provide access to every node of every net

• Access every node from both sides of the board

• Grid based component and via placement

• Correct test pad geometries and clearances

• Do not probe directly to SMT component lands

Even in the most dense designs, the philosophy of provid-

ing 100% access to every node of every net from either

side of the board can be accomplished. However, this deci-

sion must be made at the beginning of a design.

5.2.3 Test Strategy

After the product test philosophy

has been established, a test strategy or procedure can be

deﬁned. For an overview of several elements of a proce-

dure consider the following:

• Vision inspection of inner layers using AOI

• Vision inspection of O/L land/via connections

• Probe only vias on either side for bare board test

• Do not damage SMT lands with probe tips

• Probe secondary side vias for loaded test board

• Screen paste on vias for airtight board

The actual product test strategy must be organized by all of

the concurrent engineering team members who will be

involved in the testing process. This will insure that the

integration of the various test types and procedures will not

have too much redundancy, or create gaps which may

endanger test integrity.

5.2.4 Rework Strategy

Rework of a multilayer SMT

printed board can be difficult or impossible due to limited

access to inner layer conductors. Typical rework proce-

dures consist of manually cutting an inner layer conductor

with special knives, programming a drill to move the board

to a site on the board and then drilling a controlled depth

hole to disconnect an inner layer conductor, or, lifting a

lead on a surface mount component.

In the case of densely populated SMT boards, certain com-

ponents may even have to be removed to gain access to a

site where an inner layer conductor is to be cut. This vio-

lates an important rule with SMT components: Do not

remove components from the board unless it is absolutely

necessary. Doing so weakens the bond strength of the land

to the board and may even cause the land to lift off the

board. With some designs, where grid based 100% test via

accessibility is built into the land pattern, the rework ports

have been created. Each test via provides access to every

conductor on every layer of the board without exception. In

order to remove any terminal of any device from a net, the

via may simply be drilled out by hand.

Using the vias as rework ports eliminates the need to

remove any components, drill extra holes in the board, or

cut into the board with a knife to disconnect nets.

Following disconnection, the device terminal may be

reconnected to another terminal by simply soldering a wire

to the terminal with a ﬁne tip soldering iron. This is usu-

ally accomplished without disturbing any solder joints on

the board, including the lead that is being soldered to the

wire.

Aside from the wire, using this approach to rework an

SMT printed board leaves no visible indications or obvious

damage to highlight that the board has been modiﬁed.

5.3 Full Nodal Access

Full nodal access has a different

meaning for the bare board test than for the ATE test. To

achieve full integrity at the bare board test level, 100%

access to every node of every net is required. The number

of test probes needed to test the board is equal to the total

number of device terminations. However, in the case of

most dense Surface Mount designs, this often requires the

use of a double sided, or clamshell test ﬁxture because all

of the nodes are not accessible from one side of the board.

The ATE test only needs to have access to one node per

net. Every net has at least two nodes. Some nets have many

nodes, for example, on memory boards one net may be

connected to many nodes. In order to achieve full integrity

at the ATE test level, access to only one node of each net

is all that is required. Therefore, the total number of test

probes required to perform the ATE test is signiﬁcantly less

than the number required for the bare board test.

There are two alternatives to building in testability to the

SMT printed board at the design phase. One is to build in

100% nodal access for the bare board test, with the second-

ary beneﬁt being that 100% access for the loaded board test

is automatically built in.

The other alternative is to build in 100% nodal accessibil-

ity for the loaded board test during the design phase. This

approach will almost certainly guarantee that the bare

board test will not have sufficient grid based test nodes

available to complete the test without the use of a clam-

shell or two one-sided ﬁxtures.

The use of design concepts with grid based 100% nodal

access from either side of the board is the most economical

approach from the total process perspective. If the grid

based test land concept is used, the test ﬁxtures for bare

and loaded board tests will not become obsolete through

later board connectivity revisions. This is yet another sav-

ings downstream in the product development process. Also,

if the printed board uses buried vias, the grid based test

land concept with 100% nodal access will even provide

access to those buried nets from the ends of the nets. This

is another beneﬁt realized during the bare board test.

IPC-SM-782A December 1999

电子技术应用　　　　　ｗｗｗ．ＣｈｉｎａＡＥＴ．ｃｏｍ

The overall impact on SMT printed board real estate must

be considered when designing for test. There are three cat-

egories of design for test rules being employed on SMT

designs:

1) complete the design, and add the test nodes randomly at

the end;

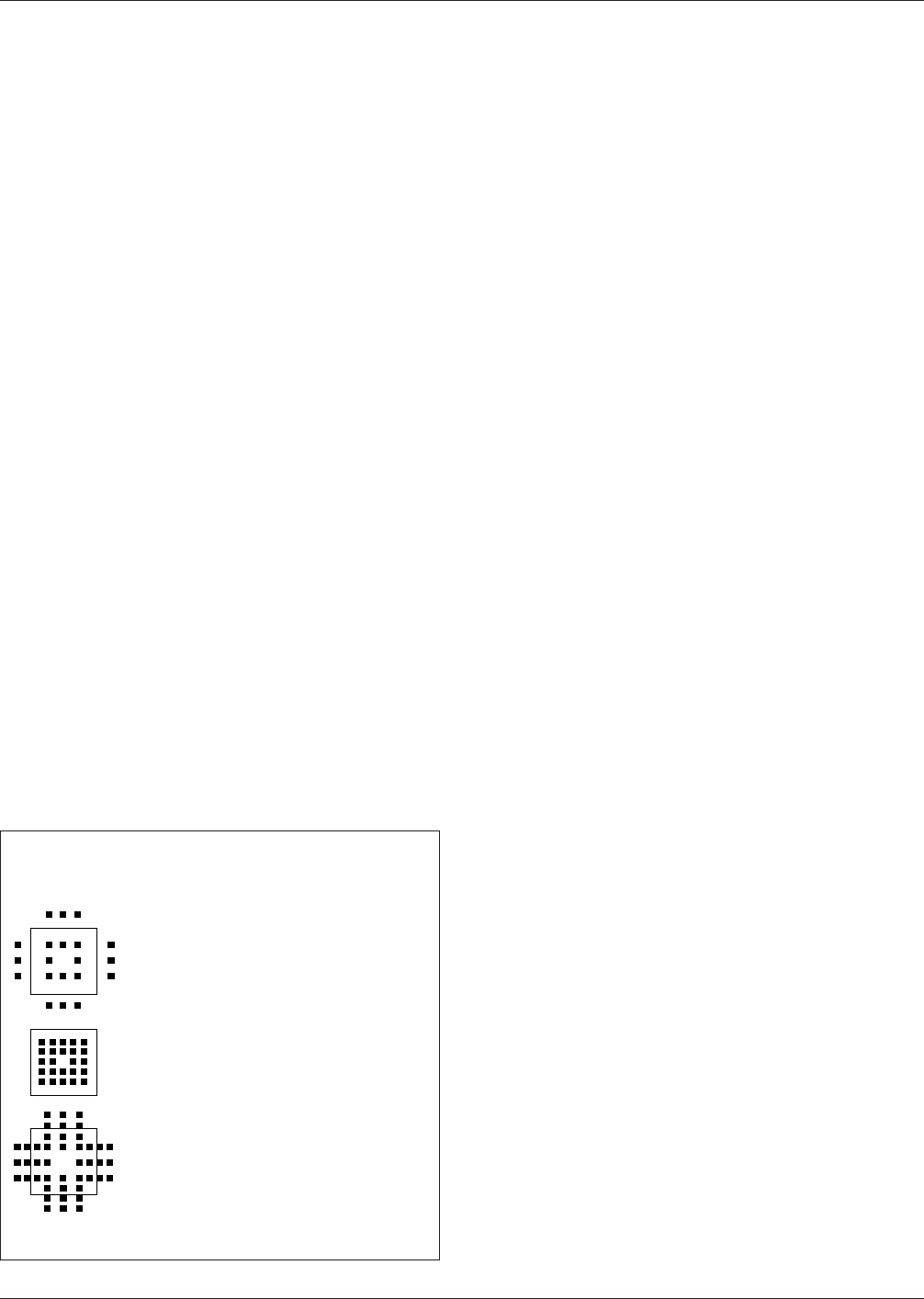

2) develop land patterns with test vias on a 2.5 mm [0.100

in] grid;

3) develop land patterns with test vias on a 1.25 mm [0.050

in] grid.

The random approach needs no discussion. The second

approach of bringing the land pattern test vias to a 2.5 mm

[0.100 in] grid works with sparsely populated boards, but

this approach consumes almost as much real estate as using

Through Hole components. With the high component den-

sity requirements of most SMT designs, the third approach

of bringing the land pattern test vias to a 1.25 mm [0.050

in] grid is the only method which will allow 100% test

node accessibility for all printed board assembly types.

SMT has been and will continue to force the test grid down

to 1.25 from 2.5 mm [0.050 from 0.100 inch]. Fine pitch

components may force the test grid down to an even

smaller size. Figure 5–1 is a schematic of various lead

pitch and test grid combinations. Using a 2.5 mm [0.100

inch] test grid on a 1.25 mm [0.050 inch] pitch component

consumes excessive real estate and is impossible on dense

SMT designs. A 1.25 mm [0.050 inch] test grid on a 1.25

mm [0.050 inch] pitch component yields the most eco-

nomical solution in terms of real estate and test node acces-

sibility. Furthermore, it can be seen that Fine Pitch compo-

nent land patterns can also be developed with the test vias

on a 1.25 mm [0.050 in] grid.

For ﬁne pitch components it is good design practice to

bring approximately half of the test vias to the inside of the

land pattern and the other half to the outside of the land

pattern. This accomplishes two objectives: 1) the maximum

loading of 100 test points per square inch limitation of all

test equipment is not exceeded: and 2) wider distribution of

test points reduces the high pressure point areas which

cause ﬁxture bowing during vacuum or mechanical actua-

tion.

5.3.1 In-Circuit Test Accommodation

Speciﬁc via lands

and holes can be accessed for automatic in-circuit test

(ICT). The via land location for each common network in

a circuit is matched to a test probe contact in the test ﬁx-

ture. The test system can then drive each device on the

assembly and quickly locate defective devices or identify

assembly process problems.

To insure precise alignment of the probe contact pins with

the printed board, exact probe position and speciﬁc net-

works must be furnished to the ﬁxture developer. Identify-

ing the test locations as components in the CAD data base

will allow for easy transfer of drilling data. This data will

reduce ﬁxture development time and eliminate the drilling

of excessive, non-functional holes in the ﬁxture base.

5.4 Limited Nodal Access Limited nodal access (less

than 100%) still allows the use of ATE bed-of-nails testing,

but not as effectively as full nodal access does. As soon as

nodal access goes below 100%, shorts, defects and

in-circuit testing cannot be performed completely, and so

some of these faults will survive to complicate later testing.

At bed-of-nails functional test, there will be increased

guided probing, because (1) not all shorts, manufacturing

defects, and I/C failures were detected earlier, and

(2) fewer internal nodes are ‘‘visible’’ through the ﬁxture.

A greater burden is therefore placed on functional or sys-

tem test to detect and diagnose shorts, defects, and bad

devices. This burden varies inversely with the nodal access

percentage. The extra effort at functional test may consist

of additional recurring manpower cost to diagnose failing

boards, or it may mean developing a more detailed func-

tional test (non-recurring cost) than would have been

planned otherwise.

5.5 No Nodal Access

No nodal access (0%) prohibits

bed-of-nails testing and defers all assembly defects and

component testing until the functional or system test bed.

This can only be cost justiﬁed if the much higher cost-per-

defect repair is performed so infrequently that the total cost

is less than the cost of developing and operating an ATE

bed-of-nails test. In other words, the ﬁrst pass yields must

be extremely high to justify this approach.

A very strong quality control program as well as mature

manufacturing process controls are required to maintain

IPC-782-5-1

Figure 5–1 Test via grid concepts

Test Via Grid Concepts

1.25mm Pitch Component

2.5mm Via Test Grid

1.25mm Pitch Component

1.25mm Via Test Grid

0.63mm Pitch Component

1.25mm Via Test Grid

December 1999 IPC-SM-782A

电子技术应用　　　　　ｗｗｗ．ＣｈｉｎａＡＥＴ．ｃｏｍ
