3 Retrofit kit for SX-Series
3.4 Inserting the cable into the machine
104 Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017
► Run the cable through the conveyor control.
► Run the cable between the conveyor control and
the conveyor side, down to sector 1.
3 Retrofit kit for SX-Series
3.4 Inserting the cable into the machine
Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017 105

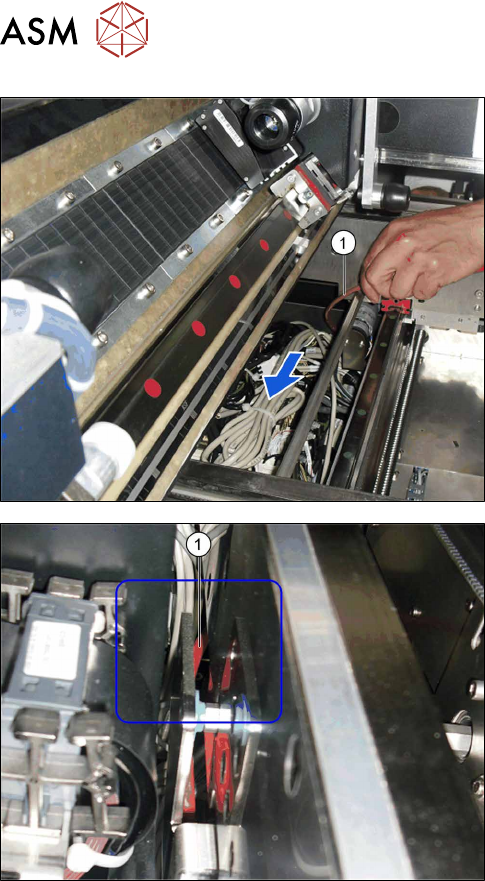

► Run the cable (1) through the rear opening in the
pneumatic unit and towards the front.
3 Retrofit kit for SX-Series
3.4 Inserting the cable into the machine
106 Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017

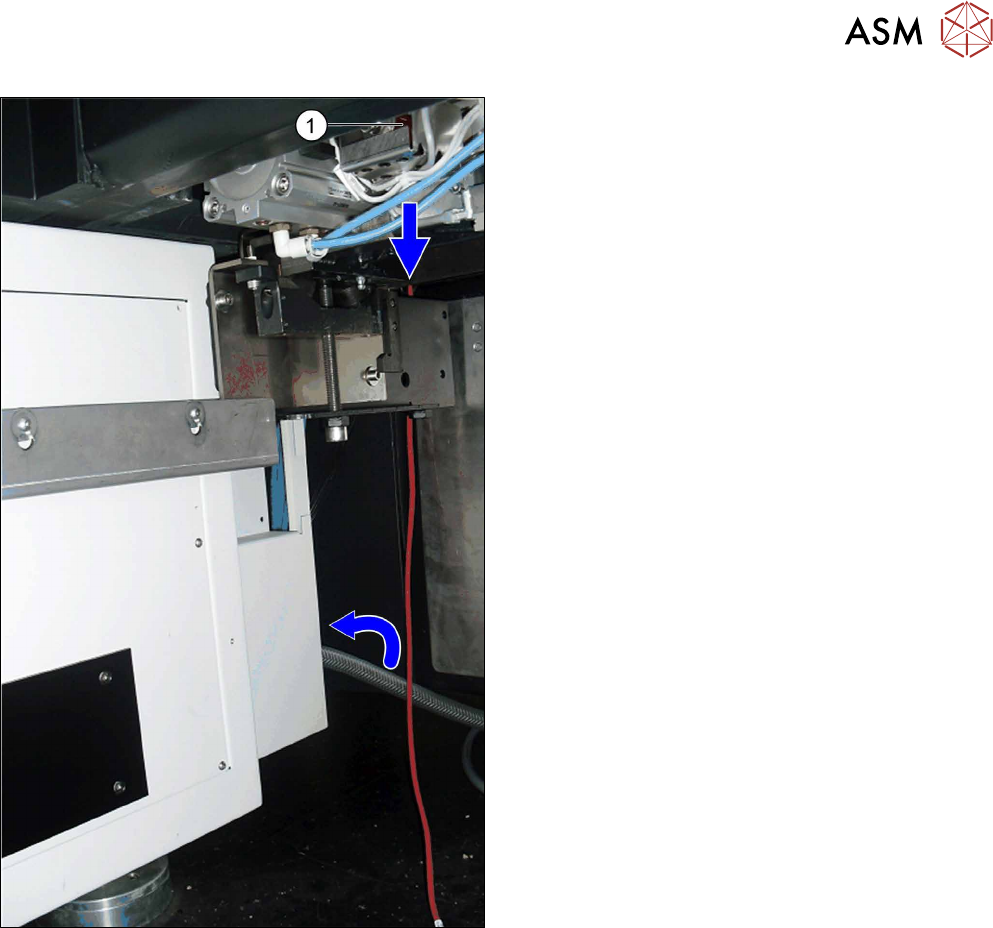

► Run the cable through the bottom recess in the
pneumatic unit.
► Fasten the door of the pneumatic unit (1) again
and relock it.
► Fit the conveyor controller covers again.
