4 Retrofit kit for X-Series S

4.2 Preparatory steps

Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017 113

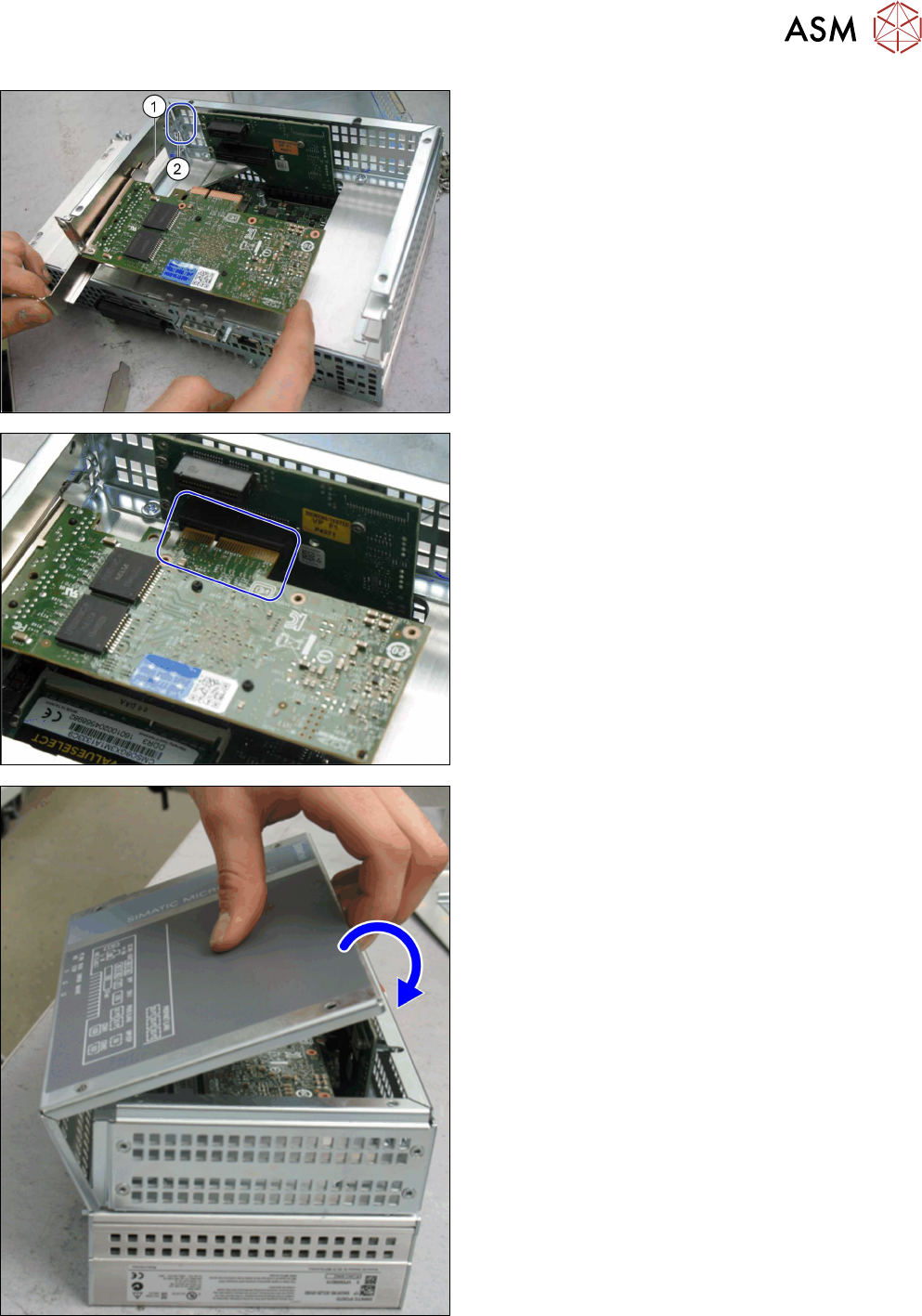

► Insert the GigE card in place of the protective

cover. Make sure that the "nib" on the guide rail

(1) correctly engages at the point where it is in-

serted (2).

► The card has a press-fit connection at the head

end. When inserting the GigE card, make sure

that this press-fit connection engages correctly

with the point opposite into which it is inserted.

► Use the fastening screw previously removed to

screw the GigE card tight.

► Close the computer: place the housing cover

back onto the hinges at the side.

► Swing the cover closed, until it engages in the

computer frame.

► Use the screws to fasten the cover.

4 Retrofit kit for X-Series S

4.2 Preparatory steps

114 Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017

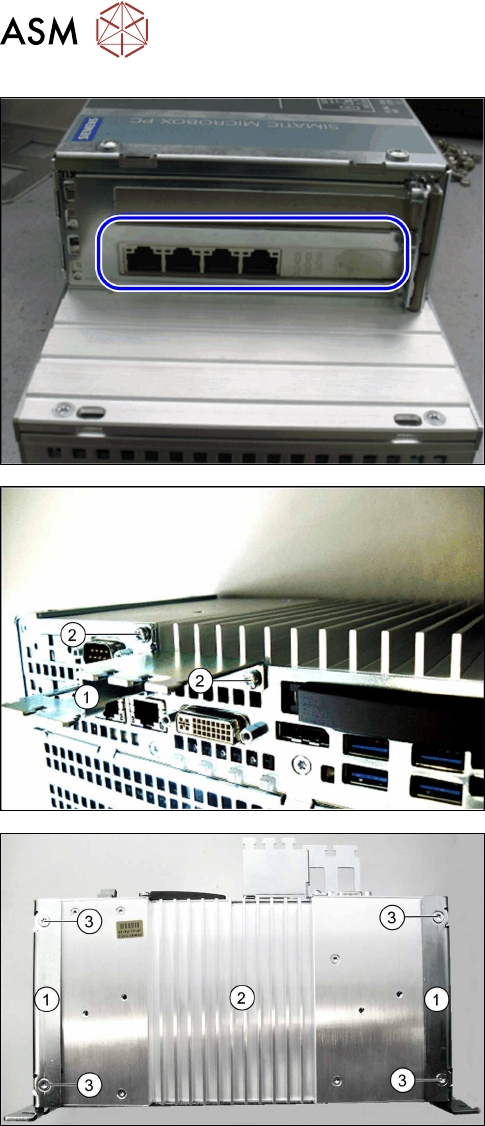

► The retrofitted computer is now ready. There are

four LAN ports for connection of the BulkFeeder

X LAN cable.

► Connection of the cable is described in the cable

instructions and in section 4.6 "Connecting the

cable" [}128].

► At the side, fit the Profibus (1) for strain relief and

the cable guidance with fastening screws (2).

► Position the two book holders (1) onto the Bulk-

Feeder X computer (2) and fasten these with the

screws provided (3) to the rear side. This allows

you to fit the BulkFeeder X computer later into

the additional holder, next to the pneumatic unit

at location 4.

4 Retrofit kit for X-Series S

4.3 Fitting the BulkFeeder X computer

Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017 115

4.3 Fitting the BulkFeeder X computer

NOTICE

Number of persons for assembly

If possible, 2 people should be available for the assembly.

The BulkFeeder X computer is fitted behind the corner cover at location 4, under the pneumatic

unit.

4.3.1 Dismantling the lower side cover

To fit the BulkFeeder X computer at location 4, you need to remove the side cover. To do so, pro-

ceed as follows:

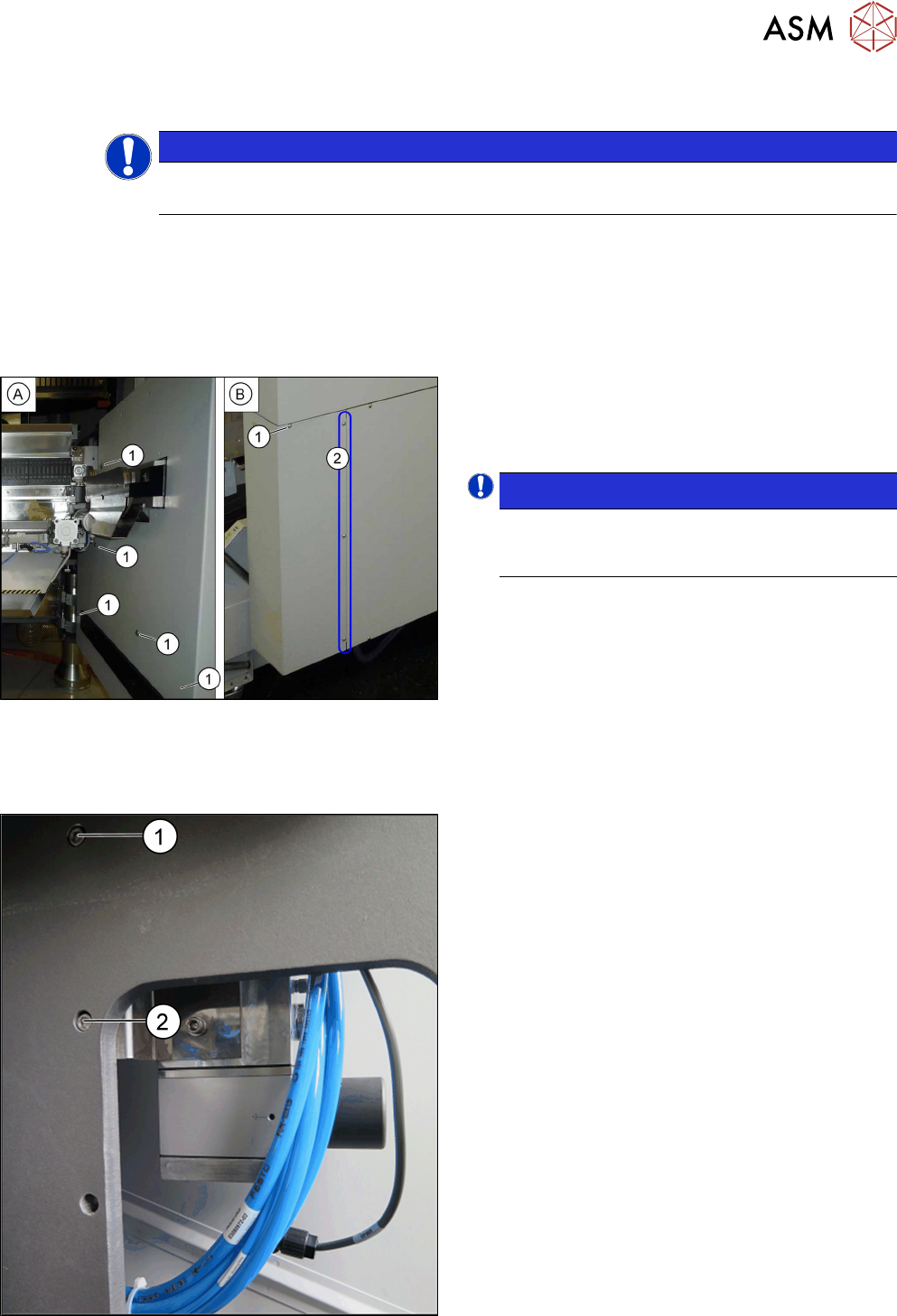

► Loosen the six screws(1) fastening the inside(A)

and outside(B) of the side cover and remove the

side cover. While unscrewing, always hold on to

the side cover, to prevent it falling off.

 NOTICE!

The three fastening screws (2) on the outer

side are just loosened. The side cover can be

pulled out here.

4.3.2 Fitting the Bulkfeeder X computer

To fit the BulkFeeder X computer behind the corner cover at location 4, you need to fit an additional

holder next to the pneumatic unit. To do so, proceed as follows:

► Remove the top screw (1) for the pneumatic unit.

► Insert the longer screw M6x20 through the open-

ing. Rotate is about twice so that it holds the unit.

► Remove the bottom screw (2) for the pneumatic

unit. The pneumatic unit can now be moved.
