2 Brief description

2.3 Scope of delivery

Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017 91

2.3.2 Retrofit kit for X-Series S

The retrofit kit for the BulkFeeder [00141650-xx] contains:

Quant-

ity

Designation Item no.

1 Retrofit kit BulkFeeder El X-Series S BBx 03145516-xx

1 Control computer Box PC IPC427D/i7 2xPCIe 03132220-xx

1 GigE ethernet adapter PCI-E I350T4V2BLK 03135985-xx

1 LAN card PCI-Express 2x Gigabit LAN 03118416-xx

1 Cable kit for retrofit kit BulkFeeder X PAx: 03145858-xx

1 Adapter cable for power Box PC_BF PA1 03145801-xx

1 Cable: LAN control computer BulkFeeder-X 03145822-xx

1 Cable: GigE BulkFeeder X feeder 1 03112556-xx

1 Cable: GigE BulkFeeder X feeder 2 03112557-xx

1 Cable: GigE BulkFeeder X feeder 3 2m 03151338-xx

1 Cable: GigE BulkFeeder X feeder 4 2m 03151339-xx

2 Patch cable CAT.6A S-FTP 7.5 m RD SI7-075 03159498-xx

1 Cable: monitor 1 video 03112144-xx

1 Cable: USB extension cable A-St – A-Bu 5 m 03032359-xx

4 Cable holder, self-adhesive, transparent 2x8mm 03148119-xx

1 Retrofit kit BulkFeeder mech. X-Series S 03146947-xx

1 Holder assy. 03146893-xx

1 Assembly accessories IPC427D portrait assembly 03147821-xx

1 Allen key, size 4, chrome-plated 00141650-xx

4 ISO 7089 - 5 - 200 HV - A2 03100635-xx

2 ISO 4032 - M6-A2-70 03008170-xx

2 ISO 4762 - M 6 x 20-A2-70 03042574-xx

4 ISO 4762 - M 5 x 10-A2-70 03042560-xx

2 Brief description

2.4 Required Working Time

92 Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017

2.4 Required Working Time

The complete installation will take approx. 8 hours.

3 Retrofit kit for SX-Series

3.1 Preparatory steps on the SX-Series

Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017 93

3 Retrofit kit for SX-Series

3.1 Preparatory steps on the SX-Series

► Move all component trolleys out of the machine.

► Switch off the machine, disconnect it from the

power supply and secure it to prevent

unauthorized reactivation. Observe the instruc-

tions in section 1.2 "Preparatory Work..." [}84].

► Remove all waste tape chutes and the covers on

the infrastructure box in sector 4 plus the cover

on the pneumatic unit in sector 1.

3.2 Preparatory steps

To operate the machine with a BulkFeeder X, you must retrofit both the Box PC supplied with it,

which is used as the BulkFeeder X computer, and the existing station computer.

●

Installation of a GigE card in the BulkFeeder X computer, to connect the BulkFeeder X.

●

Installation of a LAN card in the station computer of the machine, to connect the station com-

puter to the BulkFeeder X computer.

3.2.1 Installation of a GigE card in the BulkFeeder X computer

To fit the GigE card [03135985-xx] in the BulkFeeder X computer, proceed as follows:

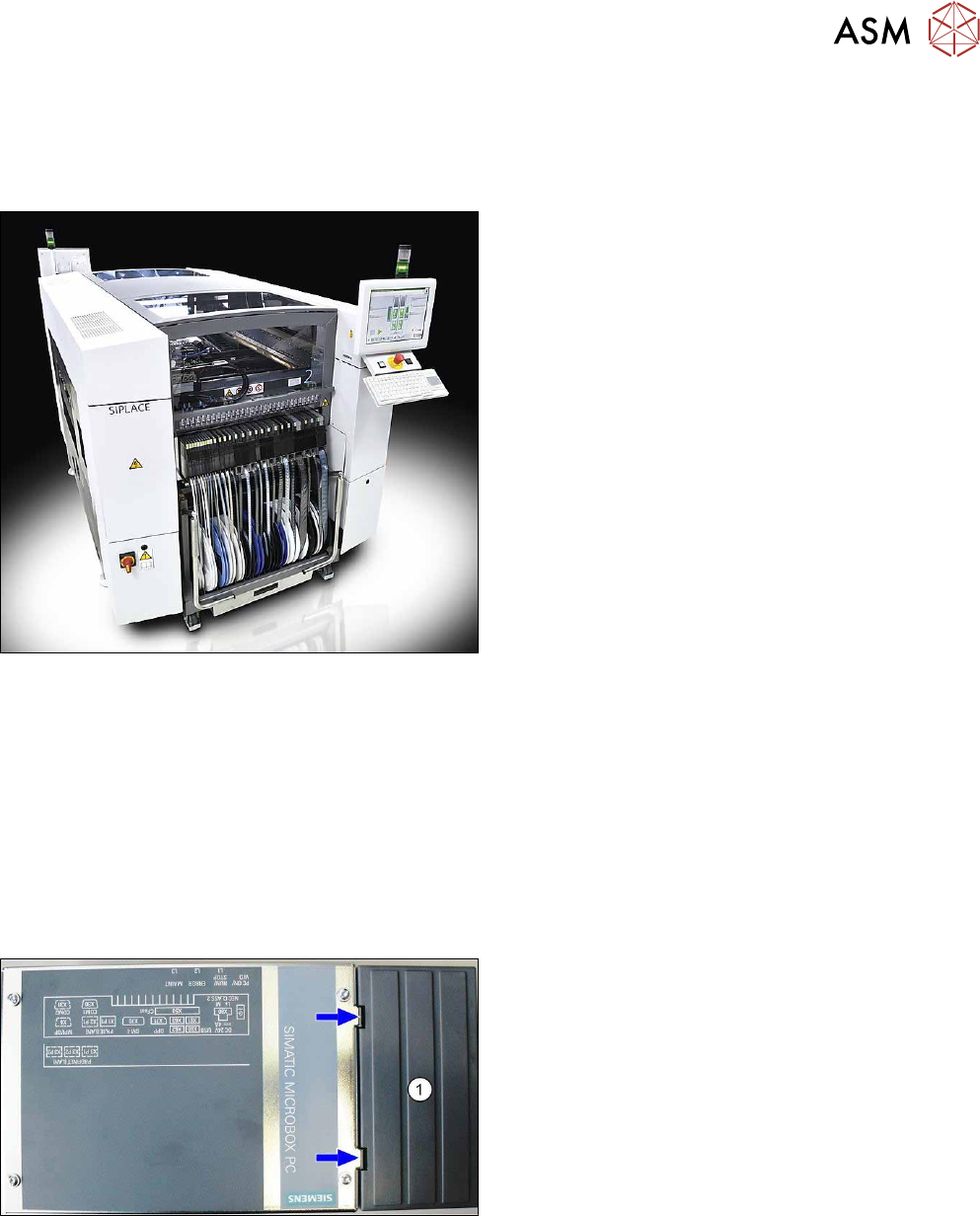

► Release the two locks on the plastic cover (1)

and remove these.
