4 Retrofit kit for X-Series S
4.5 Connecting the BulkFeeder X computer to the station computer
126 Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017

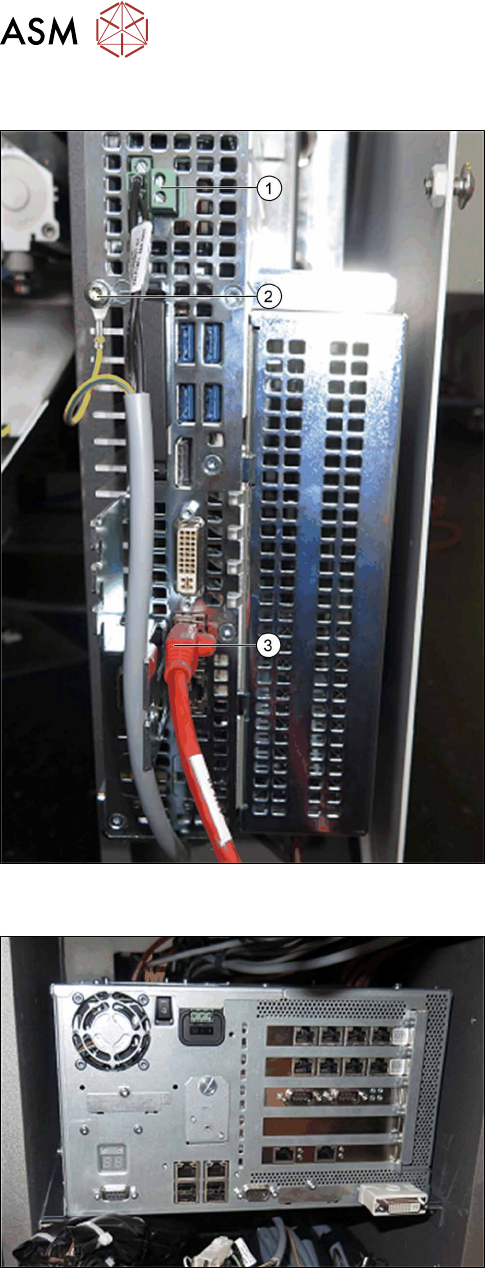

4.5.3 Connecting the cable to the BulkFeeder X computer
► Connect the cable for the power supply (1) and
the grounding (2).
► Connect the LAN cable (3).
4.5.4 Fitting the station computer
► Reposition the station computer on the velcro.
Pay attention to the position of the cable.
4 Retrofit kit for X-Series S
4.5 Connecting the BulkFeeder X computer to the station computer
Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017 127

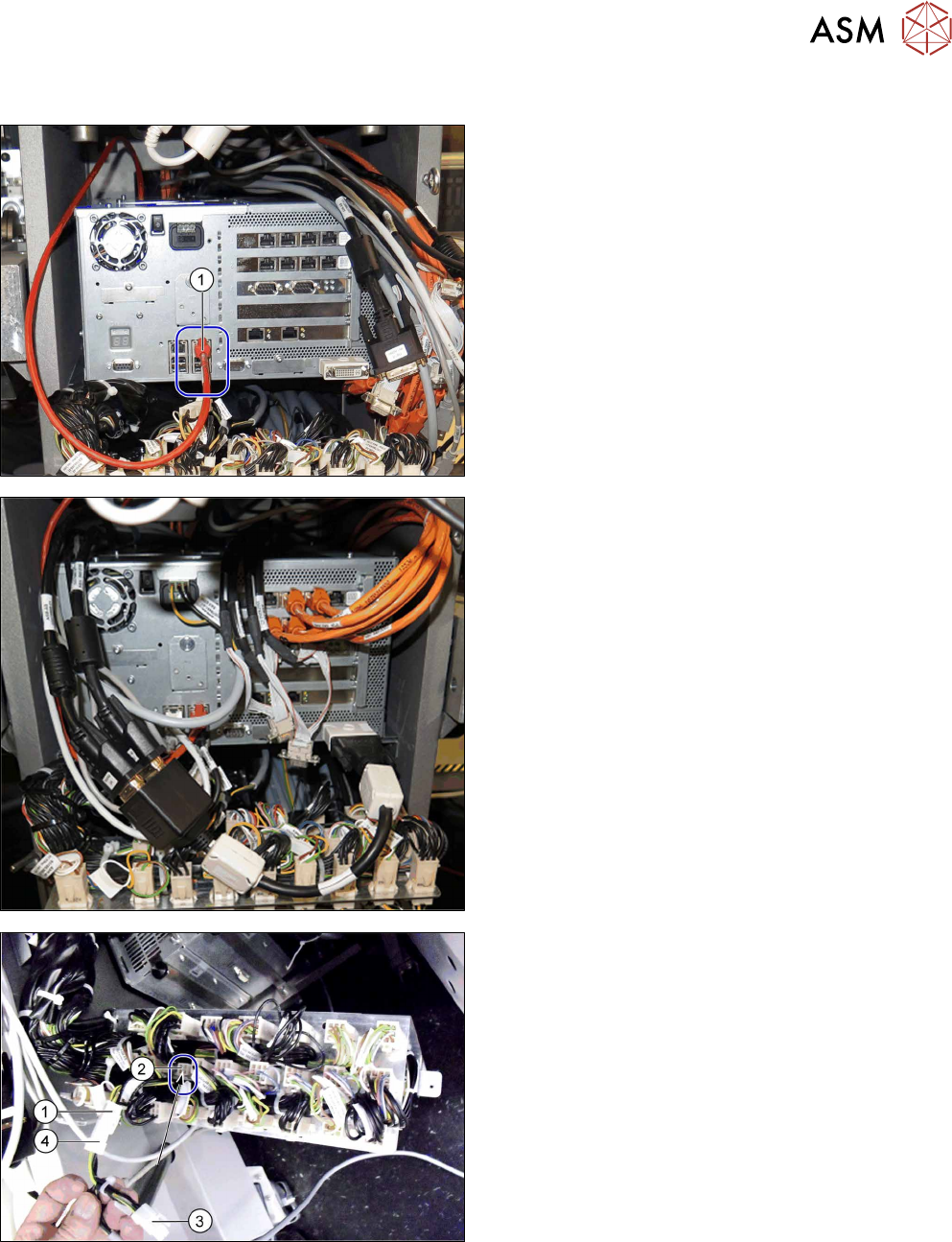

4.5.5 Connecting the cable to the station computer
► Connect the LAN cable from the BulkFeeder X
computer at the position marked (1).
From serial number H001, connect the LAN cable
to the input of the additional LAN card.
► Reconnect all other cables accordingly.
► Unplug the connector X11qa (1) from the cable
03076482-xx at the distributor terminal X11qa
(2).
► Plug the connector X11qa (3) from the adapter
cable 03145801-xx into terminal X11qa (2) from
the distributor.
► Plug the connector X11qa (1) from the cable
03076482-xx to the socket X11qa (4) from the
adapter cable 03145801-xx.
4 Retrofit kit for X-Series S
4.6 Connecting the cable
128 Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017
4.6 Connecting the cable

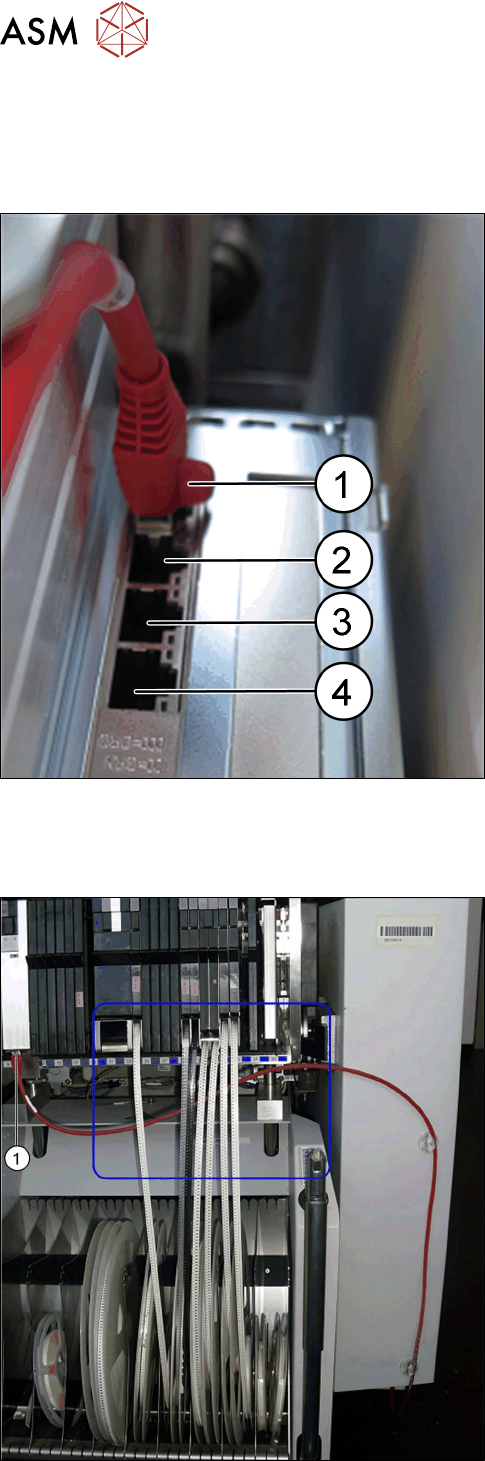

Connecting the BulkFeeder X to the BulkFeeder X computer
After inserting the cable, connect the BulkFeeder X to the BulkFeeder X computer:
► Connect the BulkFeeder X cable to the Bulk-
Feeder X computer:
(1) BulkFeeder X for location 1
(2) BulkFeeder X for location 2
(3) BulkFeeder X for location 3
(4) BulkFeeder X for location 4
Connecting the BulkFeeder X
One BulkFeeder X can be connected and operated per location. It can be placed anywhere on the
changeover table.
► Run the connection cable under the tapes.
► Connect the cable (1).
