5 Final work
5.1 Connecting the keyboard and monitor
Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017 129
5 Final work
5.1 Connecting the keyboard and monitor
The configuration and installation of the BulkFeeder X computer is undertaken using the user con-
sole at location 4. To use this, you need to connect the keyboard and monitor cable provided.

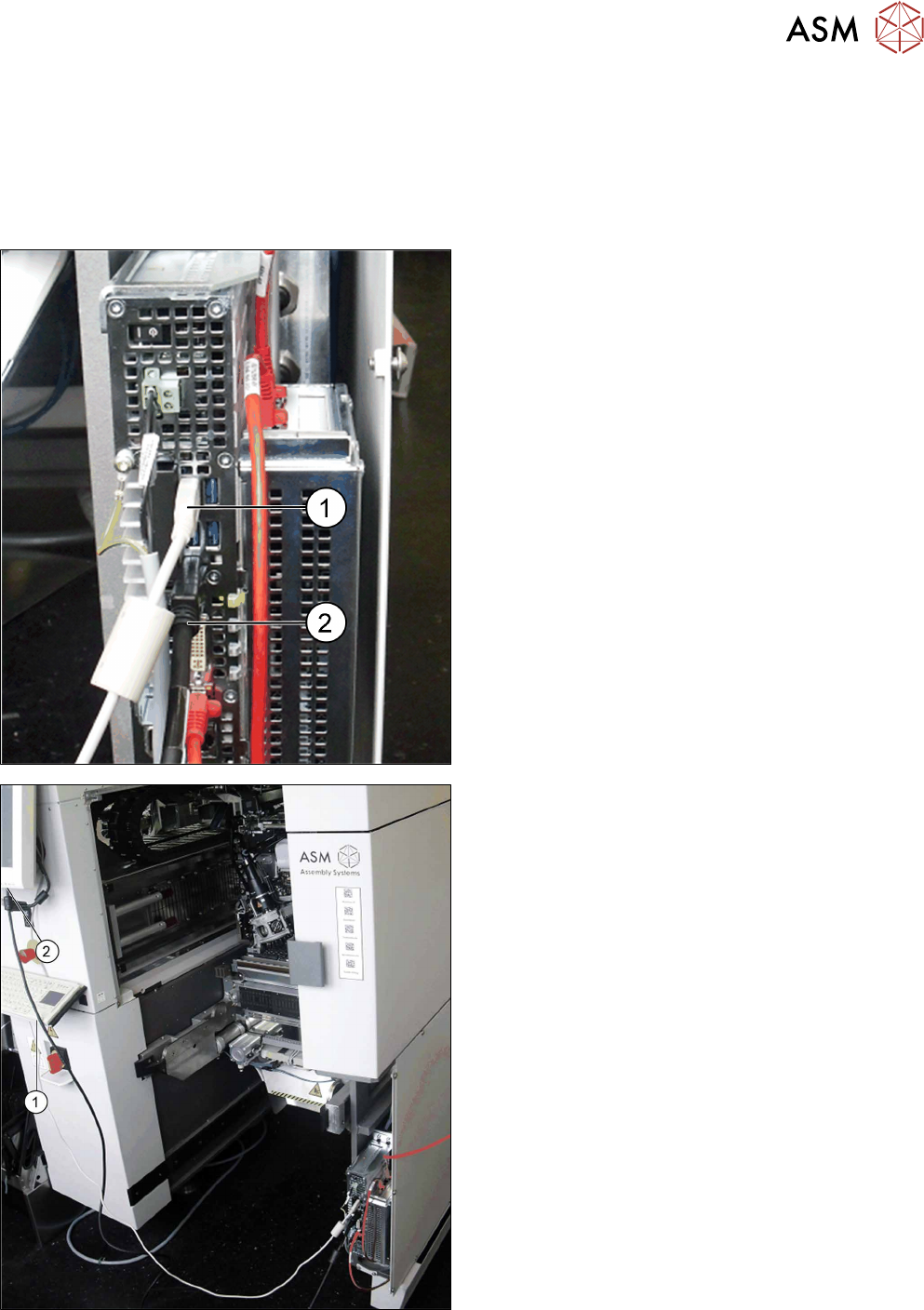

► Connect the keyboard cable (1) and the monitor
cable (2) to the BulkFeeder X computer.
► Connect the keyboard cable (1) to the keyboard
at the user console and the monitor cable (2) to
the monitor at the user console.
5 Final work
5.2 Configuring the BulkFeeder computer
130 Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017
5.2 Configuring the BulkFeeder computer
5.2.1 Configuration for SX-Series
To control the BulkFeeder X in the machine, you need to configure the BulkFeeder X computer.
To configure this computer, proceed as follows.
► Open an Explorer window and switch over to the folder SIPLACE_Configur-
ator_WES7_V2.41.
5 Final work
5.2 Configuring the BulkFeeder computer
Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017 131
► Doubleclick on the file WES7Configurator.htato start the configuration.
► SX-Series <N: Click on Box PC 627C/827C.
SX-Series from V2: Click on iBase ABP 402-A.
► Click on 7xx (Sirio).
