4 Retrofit kit for X-Series S

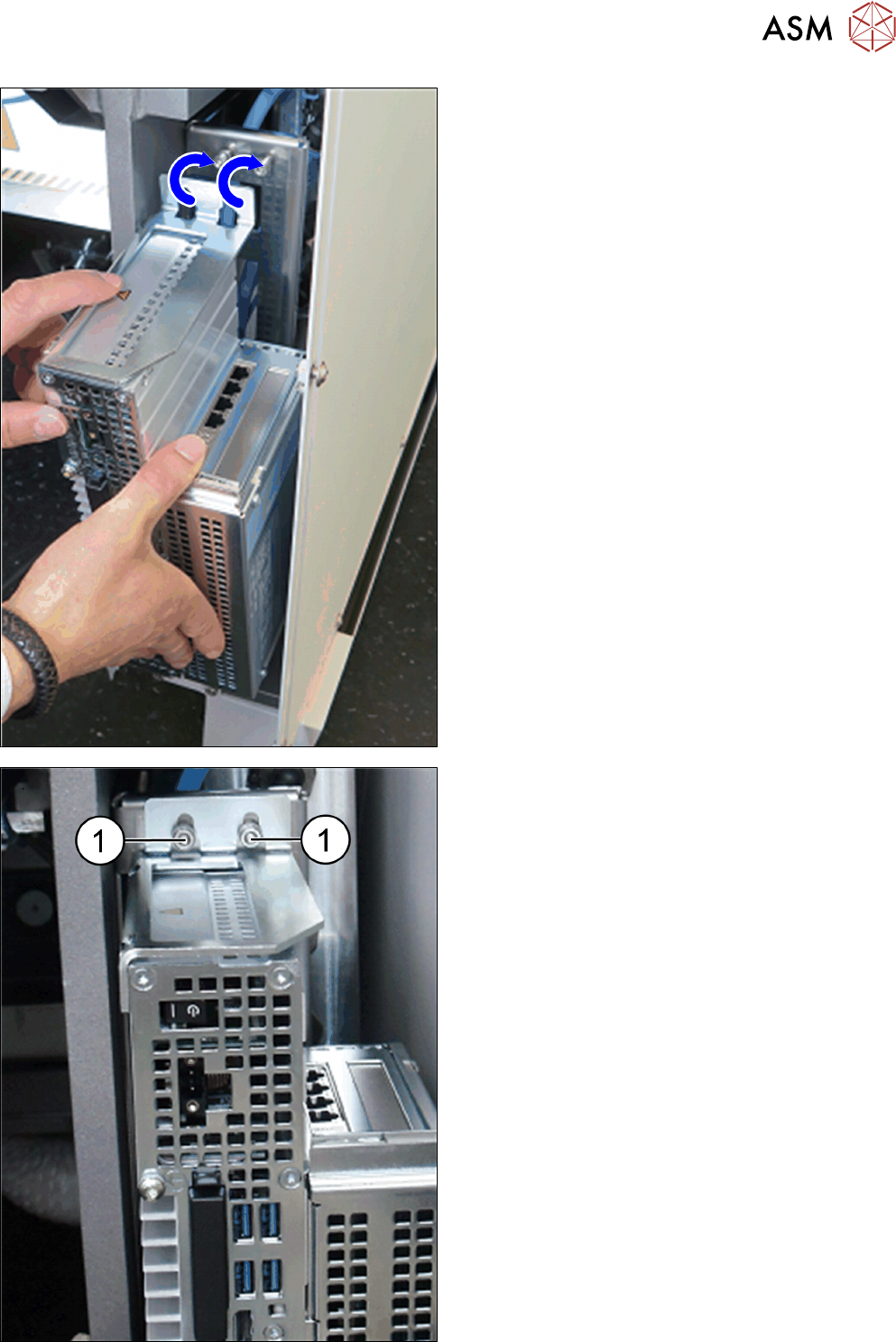

4.3 Fitting the BulkFeeder X computer
Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017 119
► Lift the openings for the top book holder over the
fastening screws.
► Tighten the top and bottom fastening screws (1).
The BulkFeeder X computer is now fitted in
place.
4 Retrofit kit for X-Series S
4.4 Inserting the cable into the machine
120 Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017
4.4 Inserting the cable into the machine
One BulkFeeder X can be connected at each location.
●
At location 4, you can connect the BulkFeeder X directly to the BulkFeeder X computer with
the cable [03151338-xx] (length 2 m).
●
To connect the Bulkfeeder X to locations 1, 2 and 3, you first need to insert the cable into the
machine.
 NOTICE!
When inserting the cable, pay attention to the labeling on the cable ends to make sure
you connect correctly: "* BF *" for the BulkFeeder X; "* GigE *" for the BulkFeeder X
computer
.

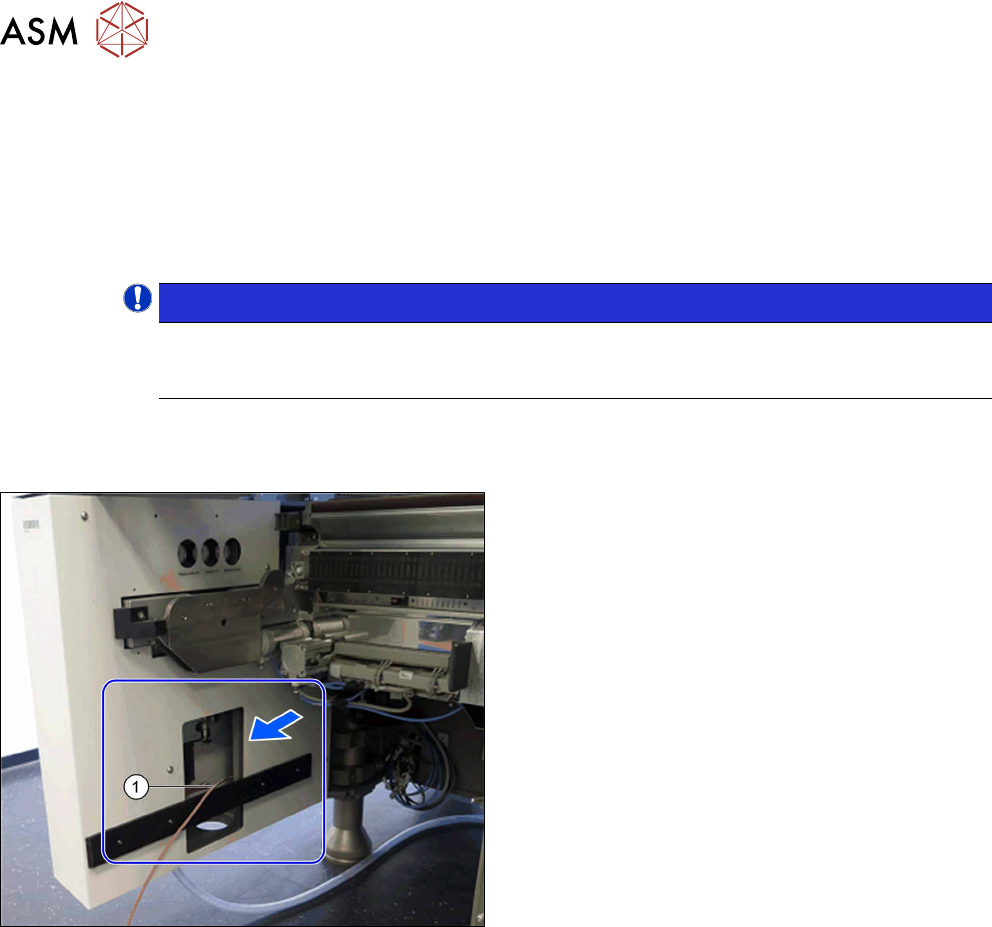

4.4.1 Location 1
Insert the cable [0312556-xx] (length 4 m) for connecting the BulkFeeder X at location 1 as follows:
► Pull the cable (1) from location 4 via the conveyor
side to location 1.
4 Retrofit kit for X-Series S
4.4 Inserting the cable into the machine
Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017 121

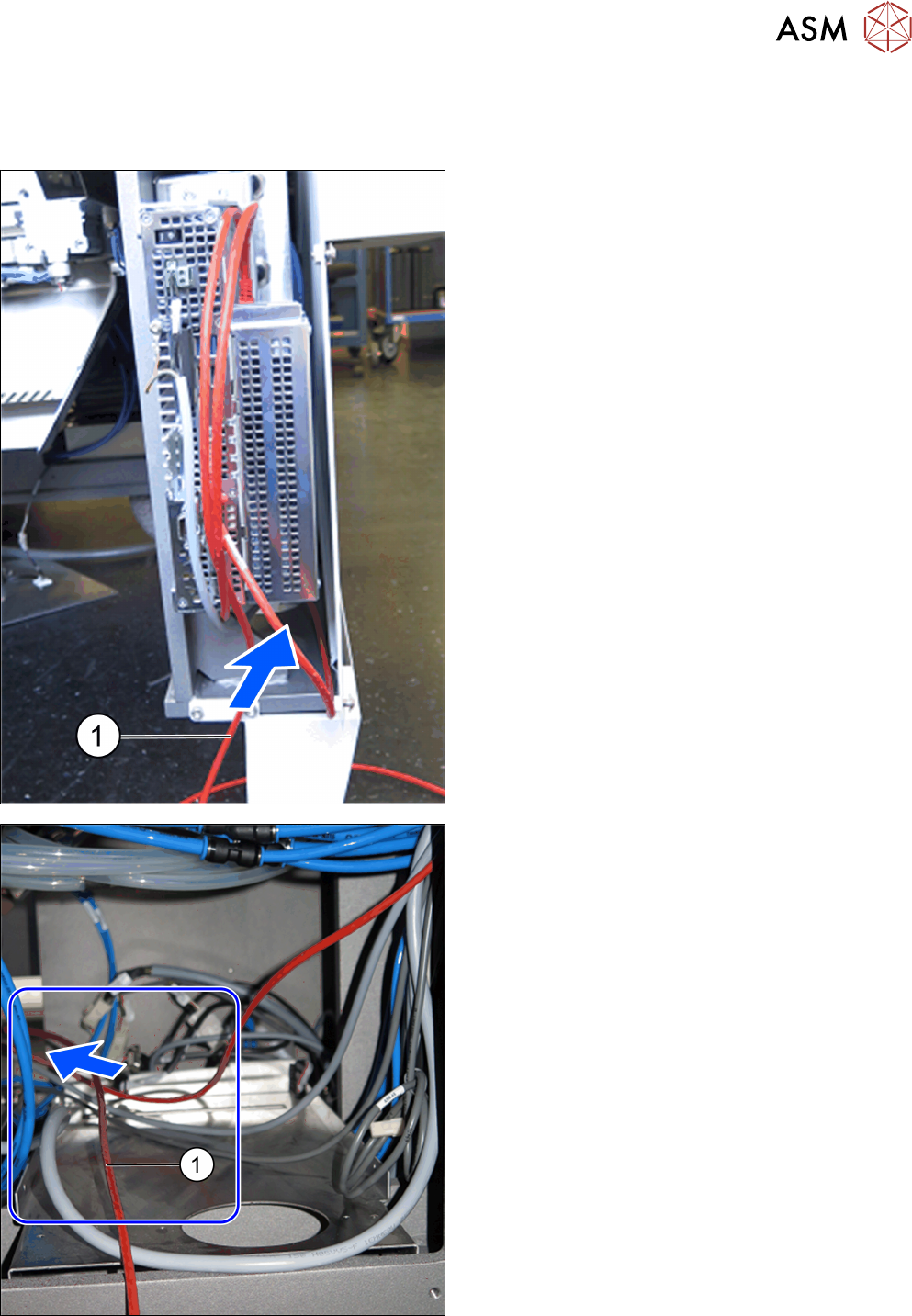

4.4.2 Location 2 and 3
Insert the cable [03159498-xx] (length 7.5 m) for connecting the BulkFeeder X at location 2 or 3 as
follows:
► Pull the cable (1) at location 4 under the fitted
Bulkfeeder X computer through the conveyor side
and towards the back.
► Run the cable to the left under the machine base,
through the bottom of the machine and to loca-
tion 1.
