5 Final work
5.2 Configuring the BulkFeeder computer
130 Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017
5.2 Configuring the BulkFeeder computer
5.2.1 Configuration for SX-Series
To control the BulkFeeder X in the machine, you need to configure the BulkFeeder X computer.
To configure this computer, proceed as follows.

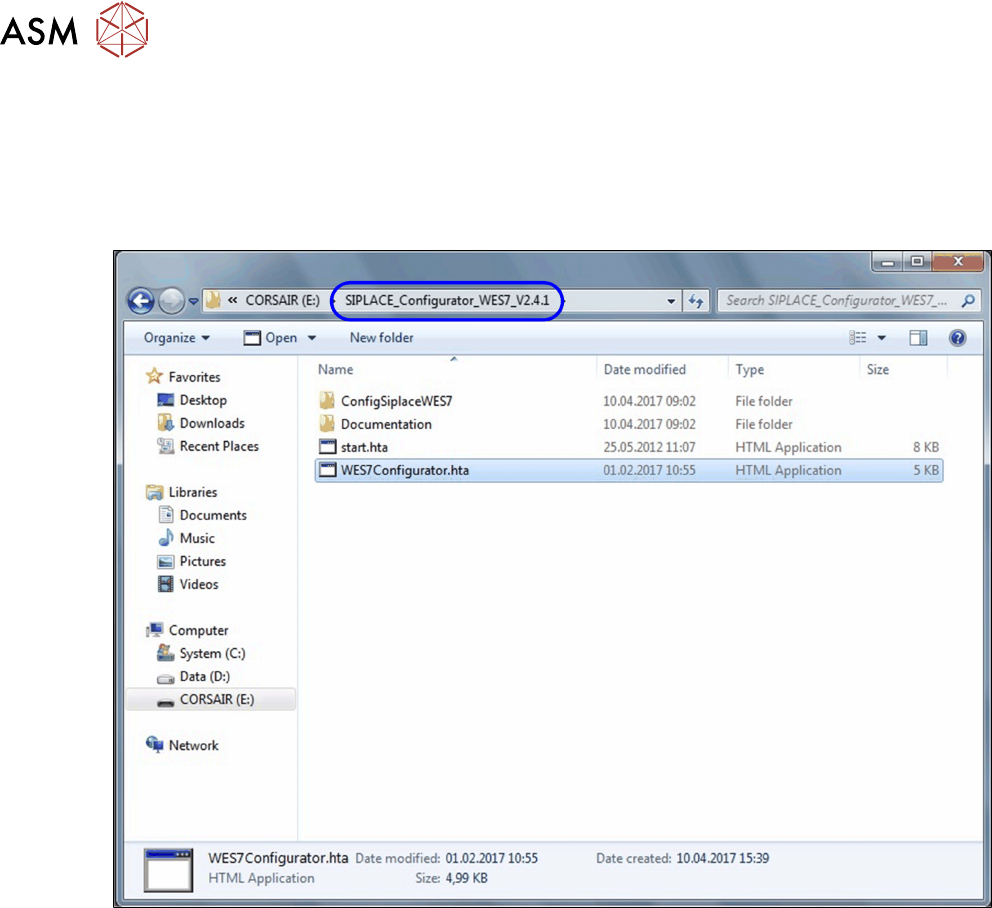

► Open an Explorer window and switch over to the folder SIPLACE_Configur-
ator_WES7_V2.41.
5 Final work
5.2 Configuring the BulkFeeder computer
Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017 131
► Doubleclick on the file WES7Configurator.htato start the configuration.
► SX-Series <N: Click on Box PC 627C/827C.
SX-Series from V2: Click on iBase ABP 402-A.
► Click on 7xx (Sirio).
5 Final work
5.2 Configuring the BulkFeeder computer
132 Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017
► Go to Station IP-address in the SIPLACE Pro LAN and enter the address of the SIPLACE
Pro computer.
► Select the BulkFeeder X Vision Computer. The BoxPC is configured as the BulkFeeder X
computer.
► Now install the station software, see 5.3 "Installing the station software" [}136].
5.2.2 Configuration for X-Series S
To control the BulkFeeder X in the machine, you need to configure the BulkFeeder X computer.
To configure this computer, proceed as follows.
► Open an Explorer window and switch over to the folder SIPLACE_Configur-
ator_WES7_V2.41.
