3 Retrofit kit for SX-Series

3.2 Preparatory steps

94 Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017

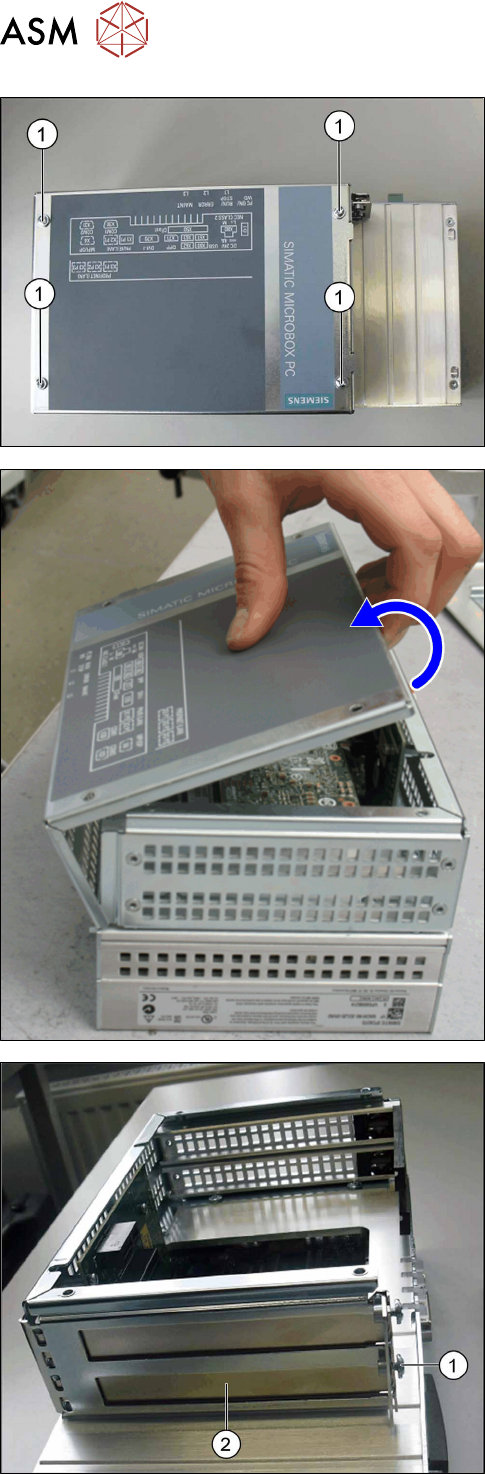

► Remove the screws (1) on the housing cover.

► Swing open the housing cover; it is held on the

folding edge by two hinges.

► Open the cover and lift it off the hinges.

► Place the cover to one side.

► Remove the screw (1) fastening the lower pro-

tective cover (2).

► Pull the protective cover off its fixtures.

► Keep the fastening screw (1). The protective

cover (2) is no longer needed.

3 Retrofit kit for SX-Series

3.2 Preparatory steps

Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017 95

► Insert the GigE card in place of the protective

cover. Make sure that the "nib" on the guide rail

(1) correctly engages at the point where it is in-

serted (2).

► The card has a press-fit connection at the head

end. When inserting the GigE card, make sure

that this press-fit connection engages correctly

with the point opposite into which it is inserted.

► Use the fastening screw previously removed to

screw the GigE card tight.

► Close the computer: place the housing cover

back onto the hinges at the side.

► Swing the cover closed, until it engages in the

computer frame.

► Use the screws to fasten the cover.

3 Retrofit kit for SX-Series

3.2 Preparatory steps

96 Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017

► The retrofitted computer is now ready. There are

four LAN ports for connection of the BulkFeeder

X LAN cable.

► Connection of the cable is described in the cable

instructions and in section 3.5 "Connecting the

cable" [}108].

► At the side, fit the Profibus (1) for strain relief and

the cable guidance with fastening screws (2).

► Fix the mounting rail (1) into place, with the

fastening screws (2). This facilitates subsequent

installation of the BulkFeeder X computer on the

mounting plate in the infrastructure box at loca-

tion 1.
